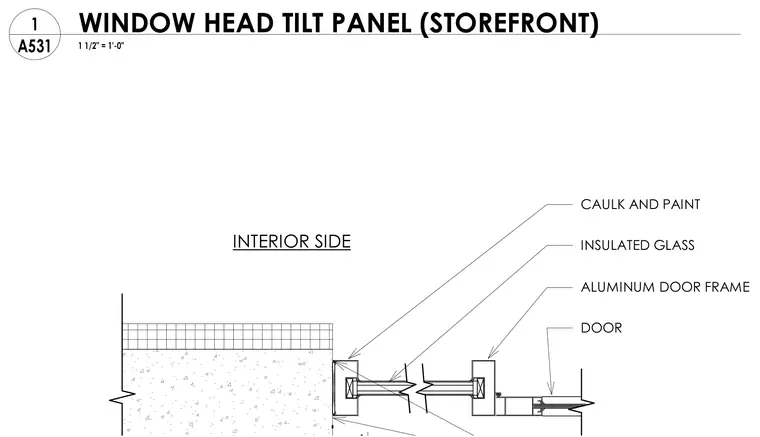

An aluminum storefront window head frames an insulated glass unit set against a tilt-up concrete wall panel. The frame perimeter is sealed with caulk and finished with paint at the concrete interface.
DOOR INSULATED GLASS INTERIOR SIDE ALUMINUM DOOR FRAME CAULK AND PAINT 1 1/2" = 1'-0" A531 1 WINDOW HEAD TILT PANEL (STOREFRONT)
