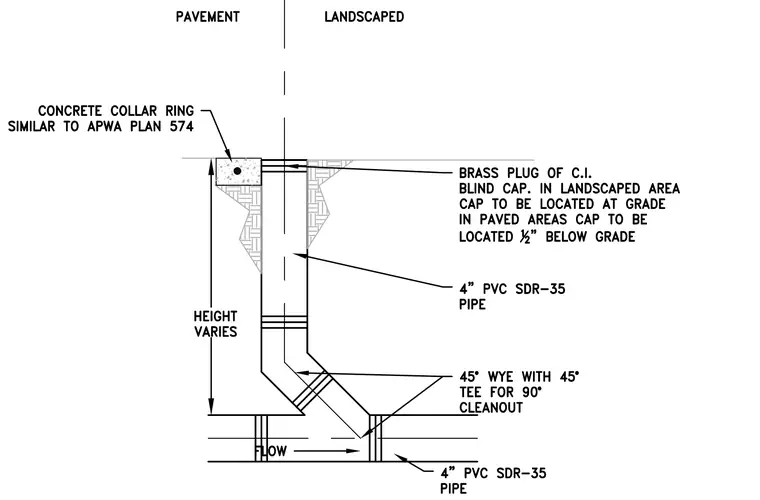

This outdoor cleanout assembly consists of a four-inch PVC SDR-35 pipe connected to a main line via a forty-five degree wye with a forty-five degree tee for a ninety degree cleanout. The vertical riser terminates with a brass plug of a cast iron blind cap, surrounded by a concrete collar ring similar to APWA Plan 574. In landscaped areas, the cap is located at grade, while in paved areas the cap is located one-half inch below grade. The overall height varies depending on site conditions.
PAVEMENT LANDSCAPED CONCRETE COLLAR RING SIMILAR TO APWA PUN 574 BRASS PLUG OF C.l. BLIND CAP. IN UNDSCAPED AREA CAP TO BE LOCATED AT GRADE IN PAVED AREAS CAP TO BE LOCATED y 2 ” BELOW GRADE 4” PVC SDR-35 PIPE HEIGHT VARIES 45* WYE WITH 45* TEE FOR 90* CLEANOUT : .0W 4” PVC SDR-35 PIPE
