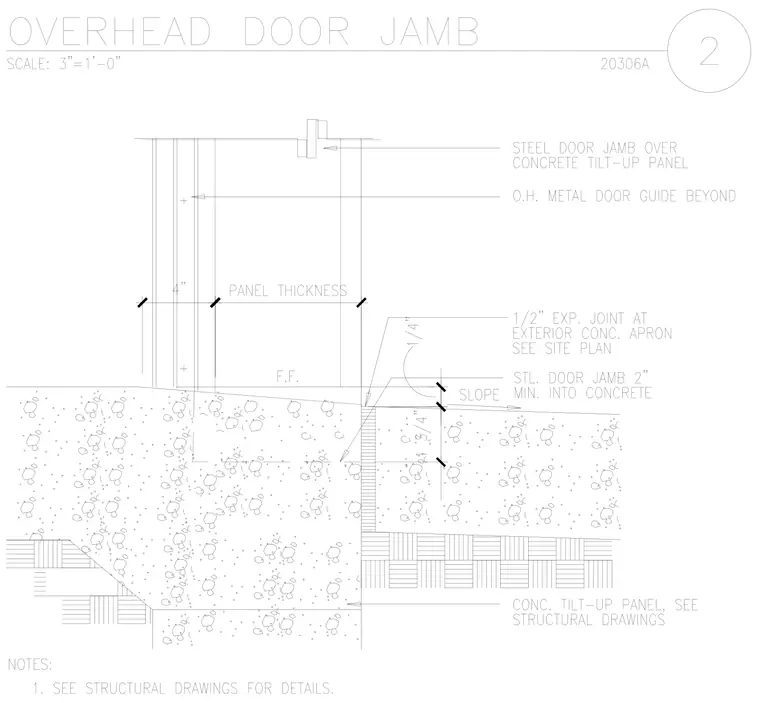

An overhead door jamb assembly interfaces with a concrete tilt-up wall panel. A steel door jamb is positioned over the concrete tilt-up panel with an overhead metal door guide located beyond. A one-half-inch expansion joint is provided at the exterior concrete apron, sized per the site plan. The steel door jamb extends a minimum depth into the concrete with a specified slope.
