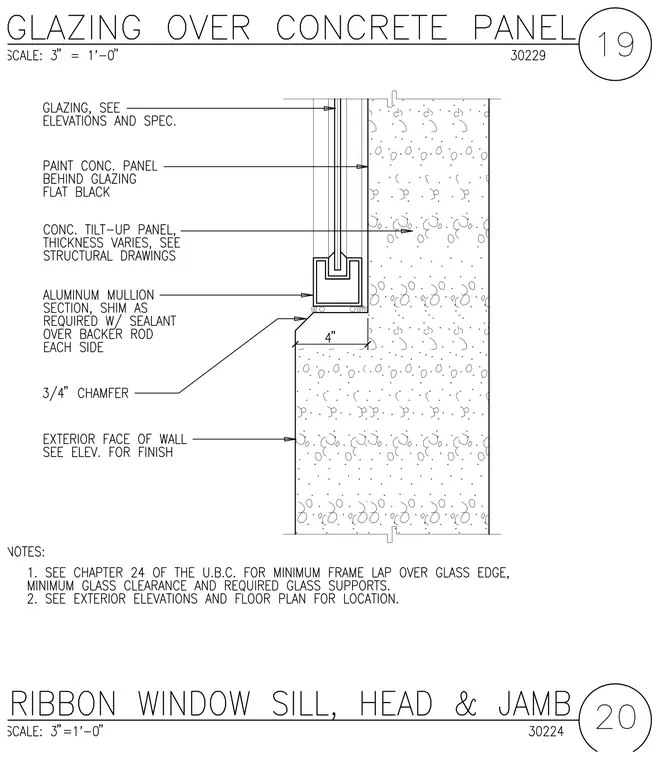

An aluminum mullion section sits atop a concrete tilt-up panel with a three-quarter-inch chamfer and is shimmed as required with sealant over a backer rod on each side. The concrete panel behind the glazing is painted flat black. Glazing details and frame lap requirements conform to Chapter 24 of the Uniform Building Code.
