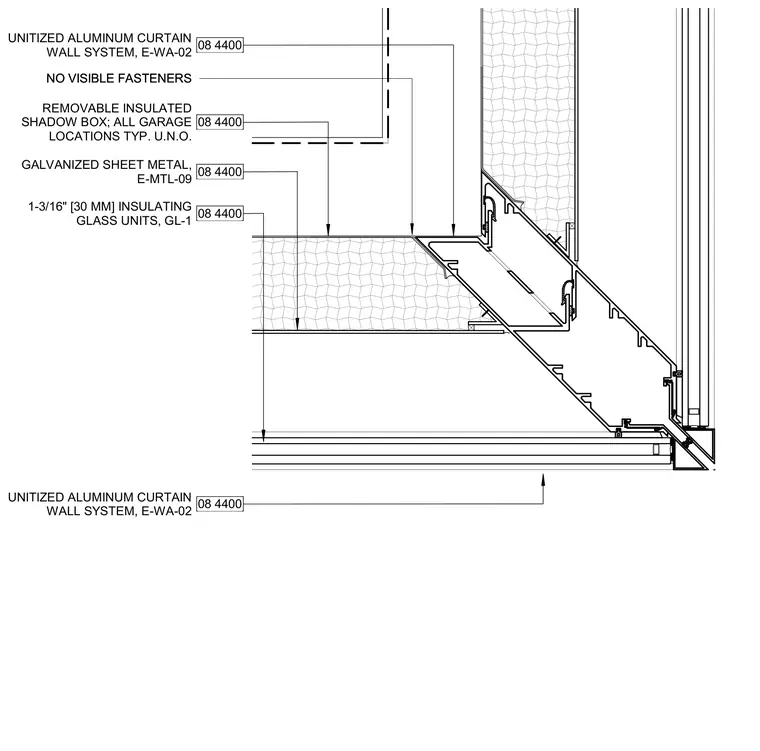

A corner mullion condition for a unitized aluminum curtain wall system designated as E-WA-02 features no visible fasteners. The assembly incorporates 1-3/16 inch [30 mm] insulating glass units designated as GL-1. A removable insulated shadow box with galvanized sheet metal E-MTL-09 is specified at garage locations typically unless noted otherwise.
08 4400 REMOVABLE INSULATED SHADOW BOX; ALL GARAGE LOCATIONS TYP. U.N.O. 08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-02 NO VISIBLE FASTENERS 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 GALVANIZED SHEET METAL, E-MTL-09 08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-02 NO VISIBLE FASTENERS
