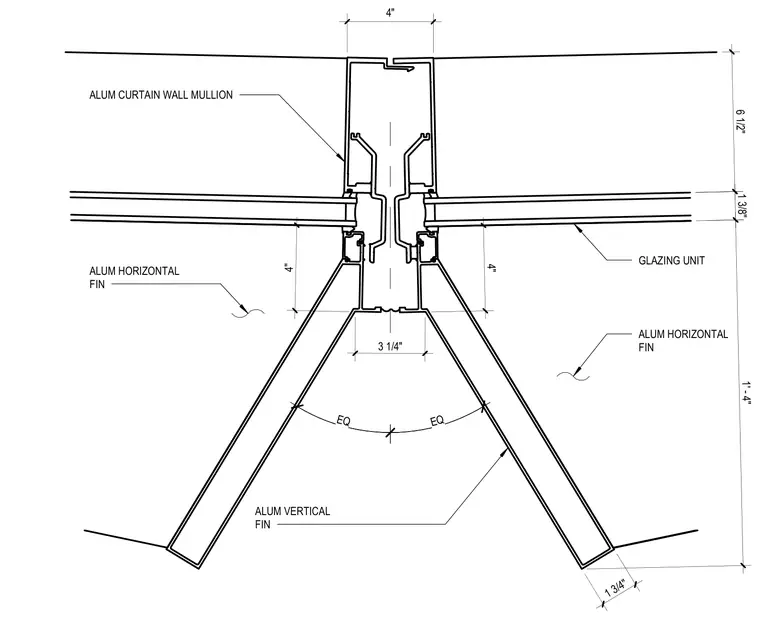

An aluminum curtain wall inside corner assembly utilizes extruded aluminum vertical and horizontal mullions with exterior-facing aluminum horizontal and vertical fins. The glazing units install into the framed pockets with standard clearances. Dimension callouts define the mullion profiles, fin spacing, and overall corner geometry.
4" 6 1/2" 1 3/8" 1' - 4" 3 1/4" EQ EQ 1 3/4" GLAZING UNIT ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN ALUM HORIZONTAL FIN 4" 4"
