The roof eave assembly bears on a concrete masonry unit wall secured with a wood sill plate and three-eighths-inch hook anchor bolts. Wood trusses frame into the roof structure, reinforced with a three-quarter-inch plywood stiffener fastened to the truss rafter and two-by-four wood stud framing. Plywood roof sheathing and self-adhering sheet underlayment support slate shingles terminating with a stainless steel metal flashing and drip edge. Custom-ripped two-by wood blocking and a synthetic wood cant form the eave overhang, finished with high-density exterior foam molding. A fiber cement soffit incorporates a continuous air vent stopped fourteen inches from the edge of the run and covered with a metal bug screen over hat channels and treated plywood.

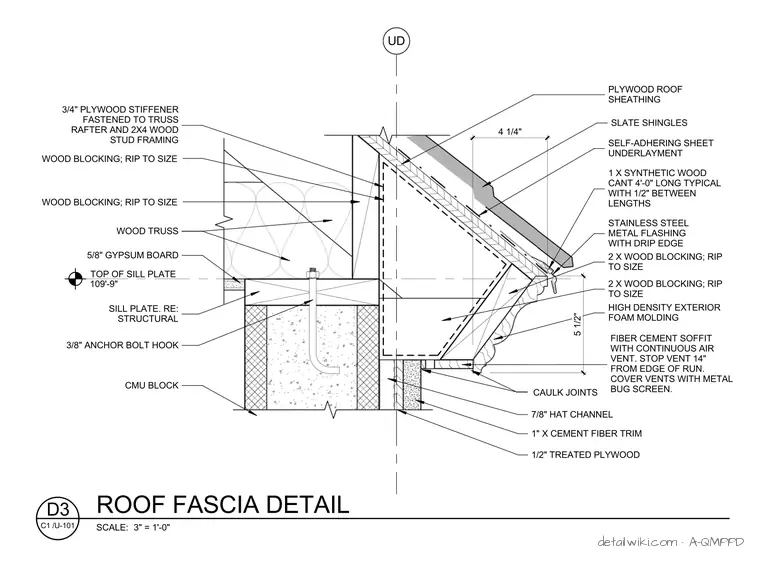

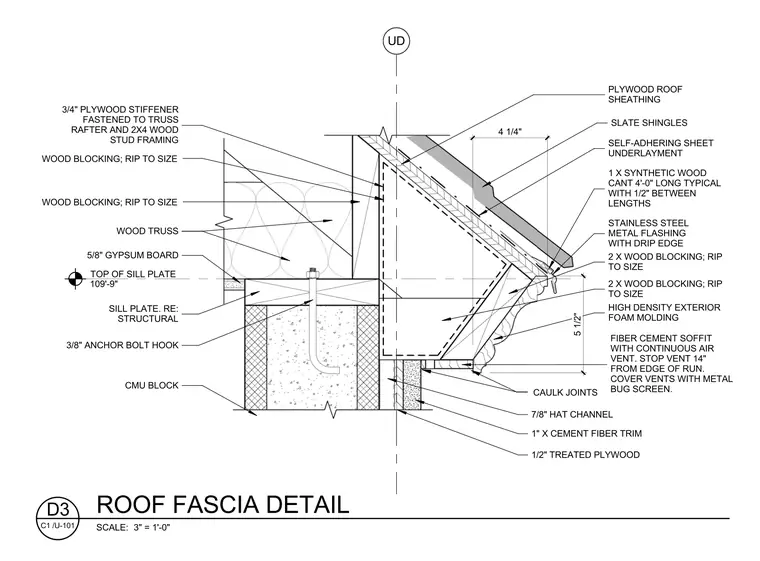

UD TOP OF SILL PLATE 109'-9" SLATE SHINGLES STAINLESS STEEL METAL FLASHING WITH DRIP EDGE SELF-ADHERING SHEET UNDERLAYMENT HIGH DENSITY EXTERIOR FOAM MOLDING PLYWOOD ROOF SHEATHING 7/8" HAT CHANNEL 5/8" GYPSUM BOARD SILL PLATE. RE: STRUCTURAL WOOD TRUSS WOOD TRUSS CMU BLOCK FIBER CEMENT SOFFIT WITH CONTINUOUS AIR VENT. STOP VENT 14" FROM EDGE OF RUN. COVER VENTS WITH METAL BUG SCREEN. 2 X WOOD BLOCKING; RIP TO SIZE CAULK JOINTS WOOD BLOCKING; RIP TO SIZE UD 4 1/4" 5 1/2" 1/2" TREATED PLYWOOD 3/8" ANCHOR BOLT HOOK 1" X CEMENT FIBER TRIM 1 X SYNTHETIC WOOD CANT 4'-0" LONG TYPICAL WITH 1/2" BETWEEN LENGTHS 2 X WOOD BLOCKING; RIP TO SIZE WOOD BLOCKING; RIP TO SIZE 3/4" PLYWOOD STIFFENER FASTENED TO TRUSS RAFTER AND 2X4 WOOD STUD FRAMING SCALE: 3" = 1'-0" C1 /U-101 ROOF FASCIA DETAIL D3
