Architectural · A-QMEFG

Elevator Threshold and Door Frame Transition Detail

Materials

Steel

Elements

Partitions Doors Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

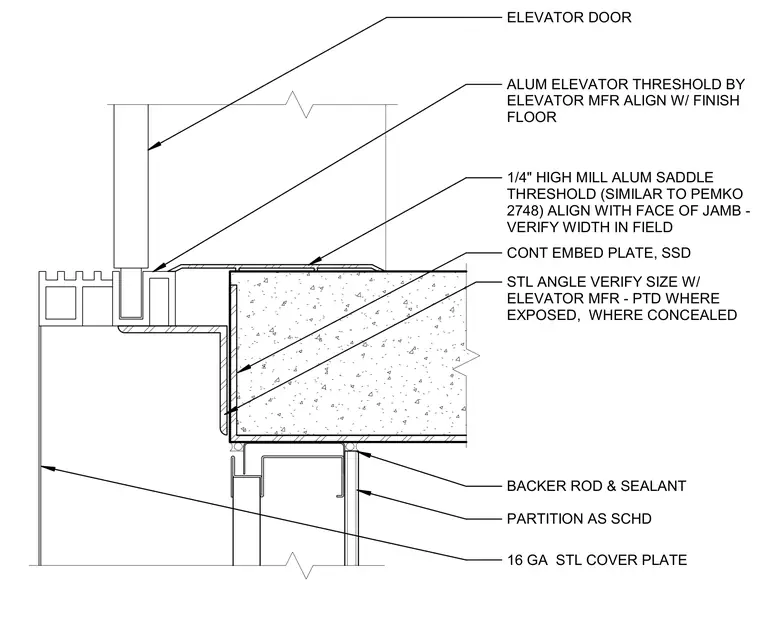

An aluminum elevator door threshold aligns with the finish floor, featuring a one-quarter-inch high mill aluminum saddle threshold similar to Pemko 2748 aligned with the face of the jamb and verified in the field. The threshold bears on a continuous stainless steel embed plate and structural steel angle, painted where exposed and where concealed, sized per the elevator manufacturer. Below the floor slab, a partition as scheduled meets the assembly with a backer rod and sealant joint, finished with a sixteen-gauge steel cover plate.
