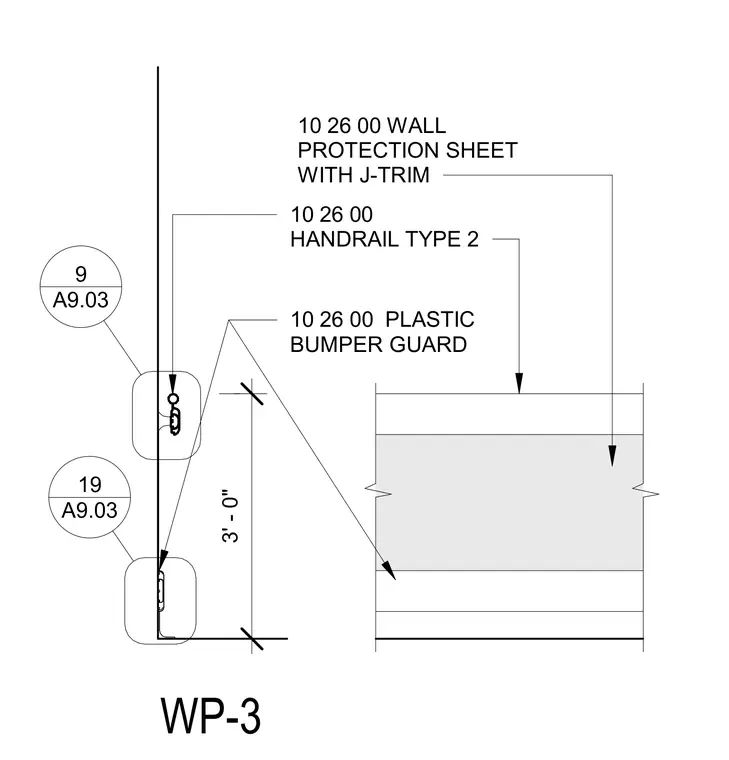

A plastic bumper guard is installed at a height of three feet above the floor assembly, anchored in conjunction with a handrail type two and a wall protection sheet finished with J-trim edges.
10 26 00 HANDRAIL TYPE 2 3' - 0" WP-3 10 26 00 PLASTIC BUMPER GUARD 10 26 00 WALL PROTECTION SHEET WITH J-TRIM A9.03 19 A9.03 9
