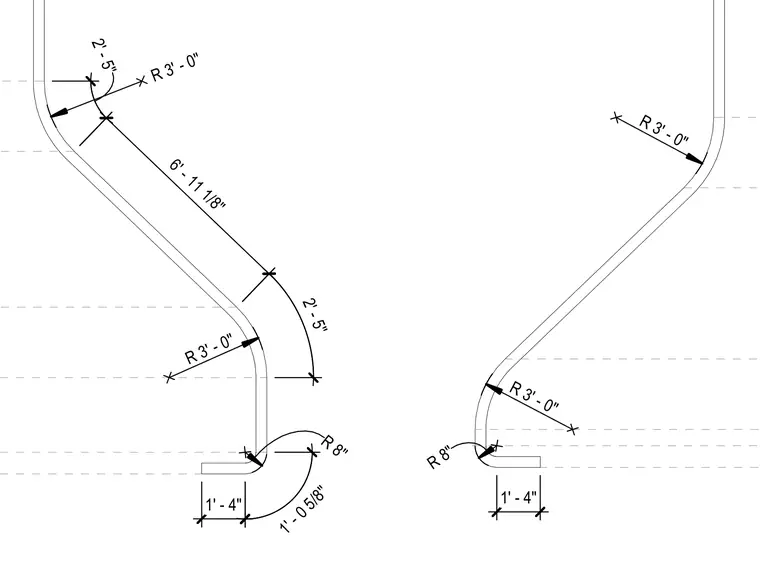

Ceiling panel K1 features a compound curved profile with a three-foot radius transition, an eight-inch corner radius, and linear segments measuring six feet eleven and one-eighth inches, two feet five inches, one foot four inches, and one foot zero and five-eighths inches.
R 3 ' - 0 " R 3 ' - 0 " R 8 " 2 ' - 5 " 6 ' - 1 1 1 / 8 " 2 ' - 5 " 1 ' - 4 " 1 ' - 0 5 / 8 " R 3 ' - 0 " R 3 ' - 0 " R 8 " 1 ' - 4 "
