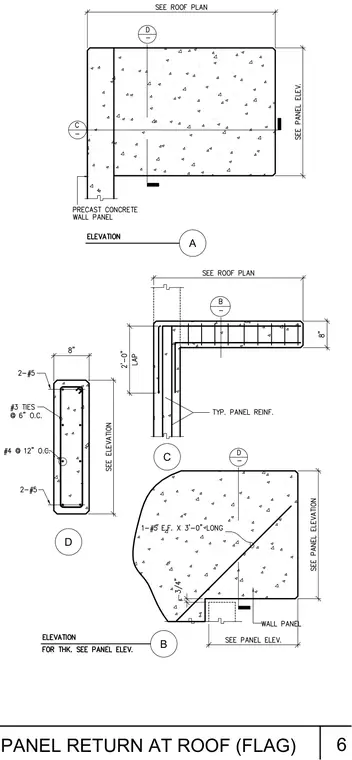

Precast concrete wall panels feature a flag return configuration at the roof level with reinforcing details indicated by typical panel reinforcement, ties, and lap splices. The assembly includes precast concrete wall panels with specified reinforcing bars such as number five bars, number three ties at six inches on center, and number four bars at twelve inches on center. Corner and return details show specific dimensions, lap lengths, and reinforcing layouts coordinated with the roof plan and panel elevations.
