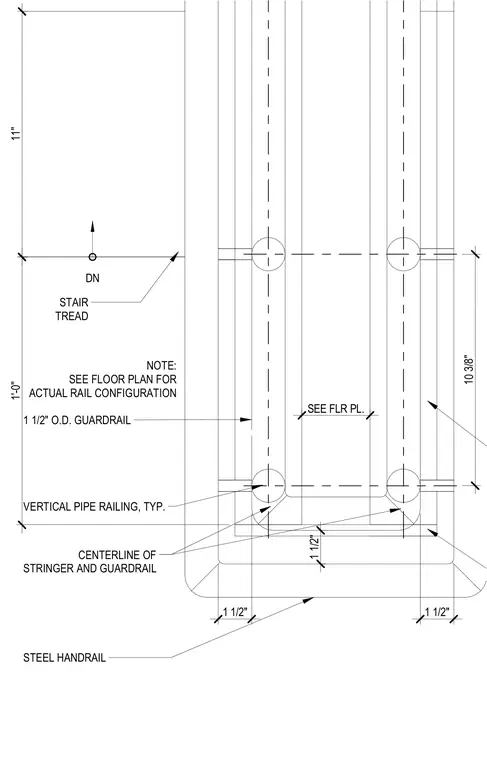

A one-and-a-half-inch outside diameter steel handrail and vertical pipe railing align with the centerline of the stair stringer. Stair treads lead downward from the landing area. The actual rail configuration is sized per floor plan. Dimensions locate the pipe railings and stringers relative to the stair landing edge.
1 1/2" 1 1/2" STEEL HANDRAIL CENTERLINE OF STRINGER AND GUARDRAIL VERTICAL PIPE RAILING, TYP. STAIR TREAD DN 1 1/2" O.D. GUARDRAIL NOTE: SEE FLOOR PLAN FOR ACTUAL RAIL CONFIGURATION 1 1/2" 11" 10 3/8" 1'-0" SEE FLR PL.
