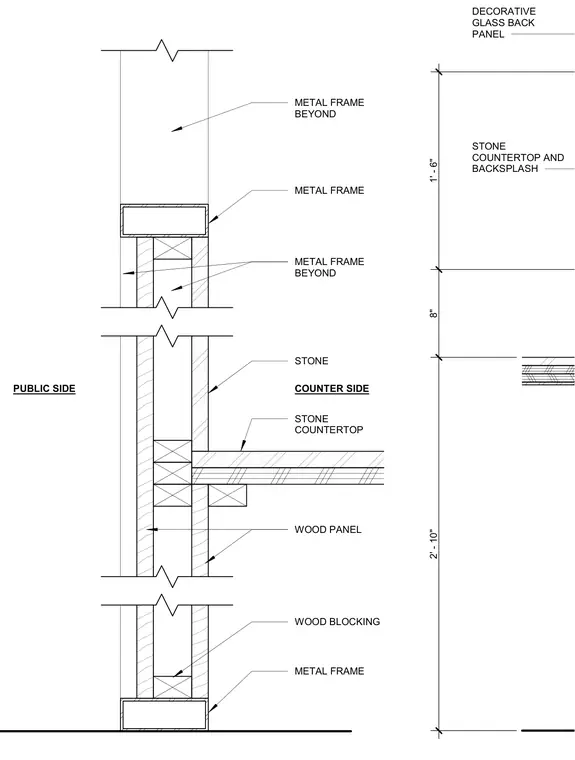

The assembly is constructed on a base metal frame with interior wood blocking and wood panels cladding the counter side. A stone countertop rests on the wood framing and blocking. A vertical metal frame extends upward to support a decorative glass back panel and stone backsplash, separating the public side from the counter side.
2' - 10" 8" 1' - 6" STONE COUNTERTOP AND BACKSPLASH DECORATIVE GLASS BACK PANEL COUNTER SIDE PUBLIC SIDE METAL FRAME WOOD BLOCKING WOOD PANEL STONE COUNTERTOP STONE METAL FRAME METAL FRAME BEYOND METAL FRAME BEYOND
