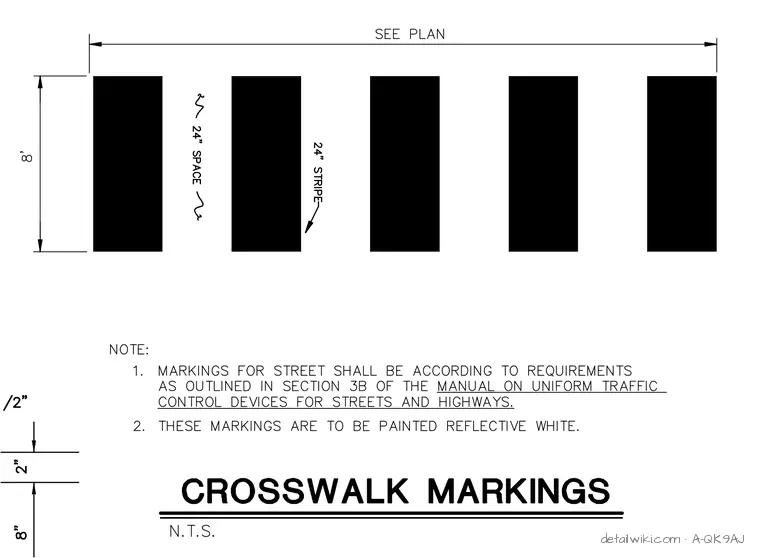

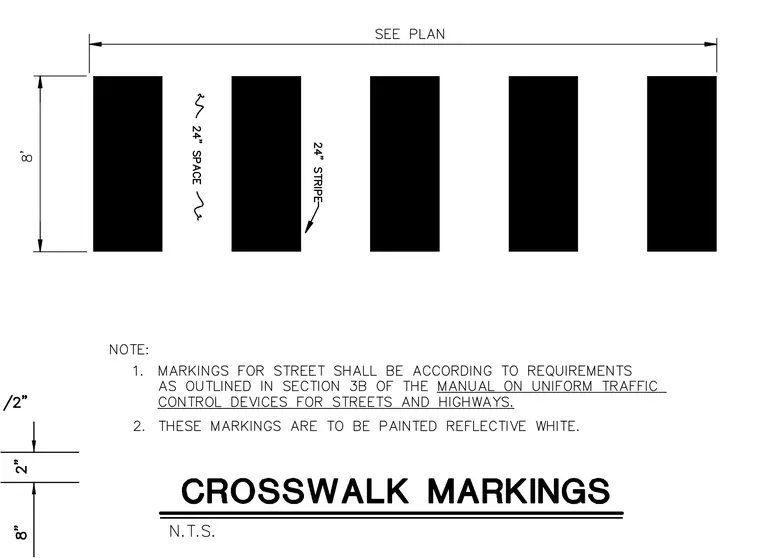

The crosswalk striping assembly consists of reflective white pavement stripes measuring twenty-four inches wide with twenty-four-inch spacing between stripes, spanning an eight-foot length sized per plan. Street markings comply with the requirements outlined in Section 3B of the Manual on Uniform Traffic Control Devices for Streets and Highways. All markings are specified to be painted reflective white.
