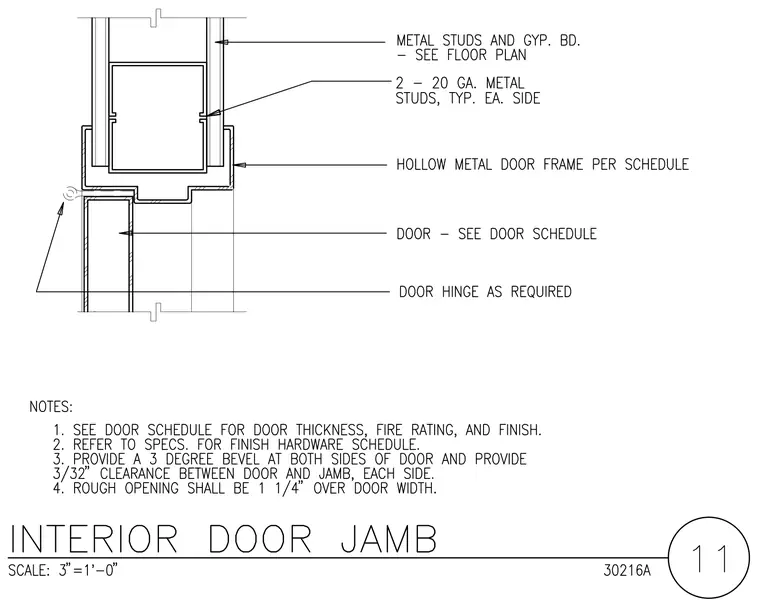

A hollow metal door frame is set within a partition framed with metal studs and gypsum board. Two twenty-gauge metal studs are placed typically at each side of the opening for frame support. A door leaf is hung within the hollow metal frame using a door hinge as required by hardware specifications.
