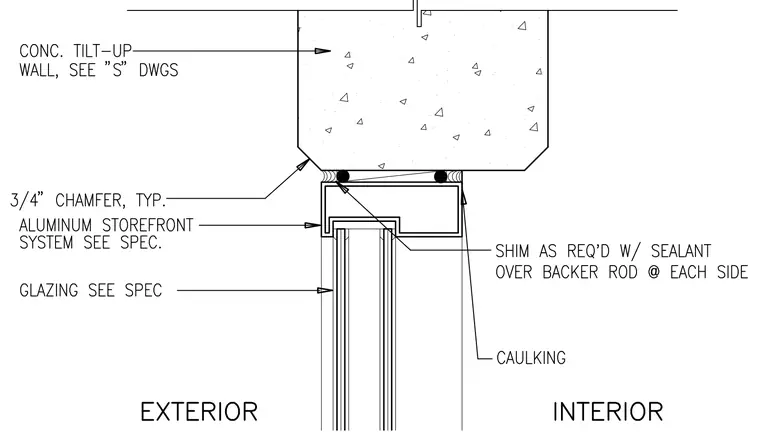

An aluminum storefront head or jamb abuts a concrete tilt-up wall featuring a three-quarter inch typical chamfer. Shims as required are placed with sealant over a backer rod at each side of the frame interface. Caulking seals the interior and exterior perimeters. Glazing is installed within the aluminum frame per specifications.
