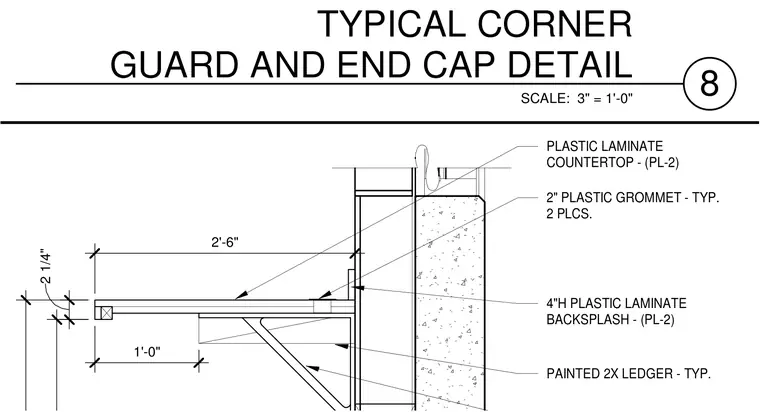

A plastic laminate countertop designated as PL-2 is supported by a painted two-by wood ledger with typical brackets. A four-inch high plastic laminate backsplash finishes the wall junction behind the countertop. Two-inch plastic grommets are placed in two locations across the assembly for wire management.
PLASTIC LAMINATE COUNTERTOP - (PL-2) 4"H PLASTIC LAMINATE BACKSPLASH - (PL-2) 2" PLASTIC GROMMET - TYP. 2 PLCS. PAINTED 2X LEDGER - TYP. 2'-6" 2 1/4" 1'-0" SCALE: 3" = 1'-0" 8 TYPICAL CORNER GUARD AND END CAP DETAIL
