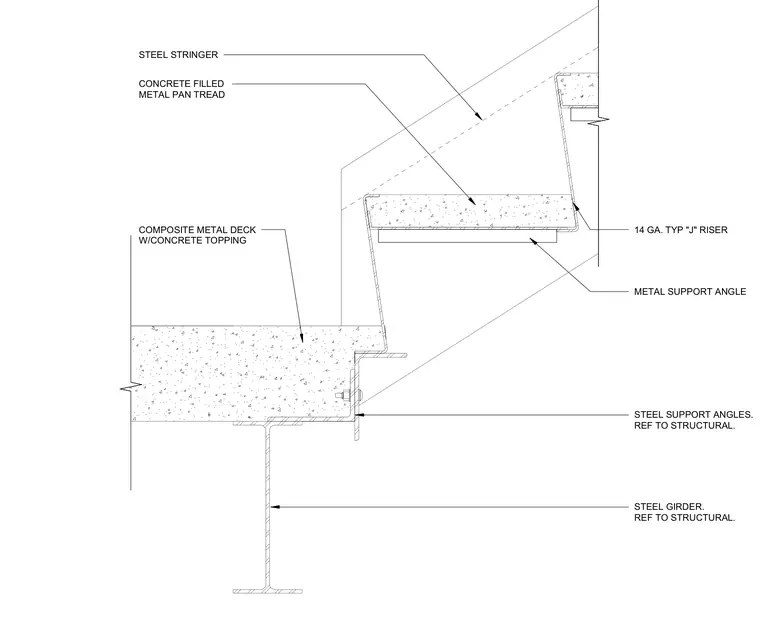

Concrete-filled metal pan treads are supported by a fourteen-gauge typical J-riser and metal support angles that connect to the steel stringer. The stair assembly ties into a composite metal deck with concrete topping at the floor level. Steel support angles connect the stair framing back to the structural steel girder, with structural connections coordinated per structural drawings.
CONCRETE FILLED METAL PAN TREAD STEEL SUPPORT ANGLES. REF TO STRUCTURAL. STEEL GIRDER. REF TO STRUCTURAL. COMPOSITE METAL DECK W/CONCRETE TOPPING STEEL STRINGER 14 GA. TYP "J" RISER METAL SUPPORT ANGLE
