An interior partition wall consists of eight-inch metal stud framing filled with sound attenuation batt insulation, sheathed on the face with five-eighths-inch gypsum wall board. A finish layer is applied over the gypsum board per the interior finish schedule. Stud spacing is determined per the structural drawings.

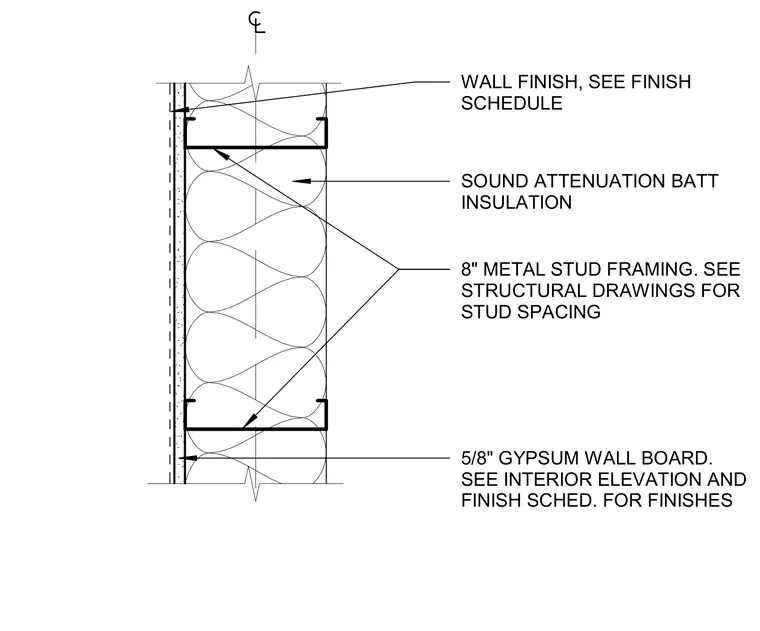

8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
