Six-inch sixteen-gauge minimum cold-formed metal studs are spaced at sixteen inches on center and extend to the underside of the deck with continuous bridging spaced at five-foot intervals. One side receives five-eighths-inch gypsum board extending to four inches above the ceiling, or to the underside of the deck where there is no ceiling.

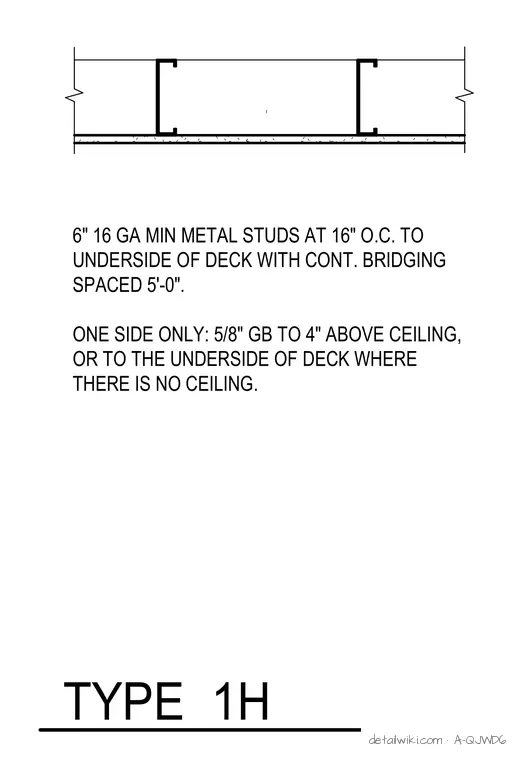

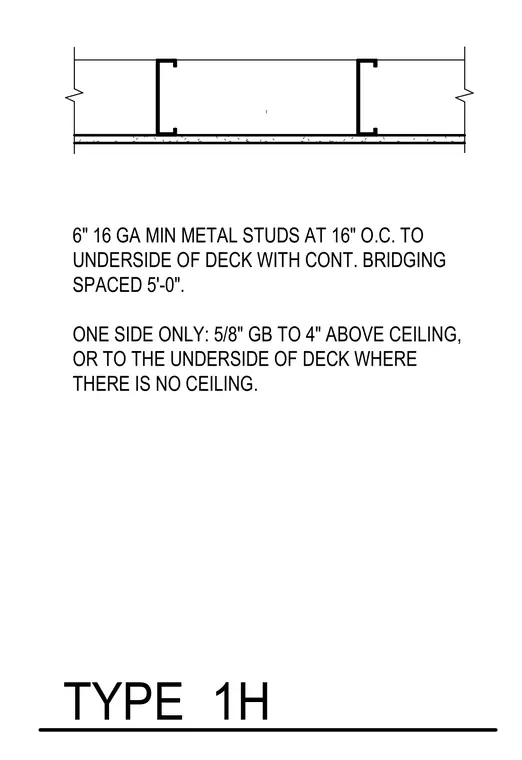

6" 16 GA MIN METAL STUDS AT 16" O.C. TO UNDERSIDE OF DECK WITH CONT. BRIDGING SPACED 5'-0". ONE SIDE ONLY: 5/8" GB TO 4" ABOVE CEILING, OR TO THE UNDERSIDE OF DECK WHERE THERE IS NO CEILING. TYPE 1H
