Electrical Device Mounting Heights at Doorway

Materials

Elements

Doors Waterproofing / Flashing Connections / Plates

About this detail

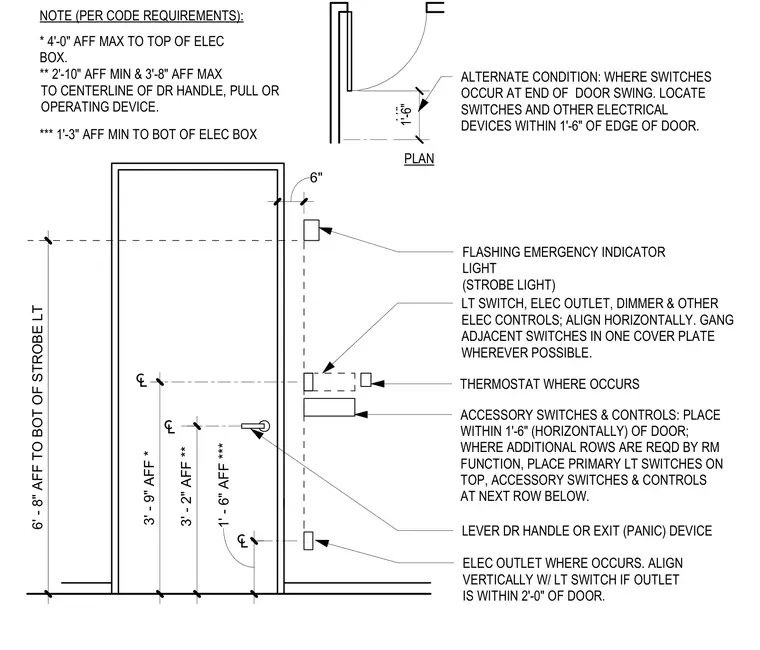

Electrical devices and controls are positioned adjacent to door frames according to strict code requirements and functional standards. The top of electrical boxes is limited to a maximum height of 4 feet above finished floor, while electrical outlets require a minimum height of 1 foot 3 inches to the bottom of the box. Door handles, pulls, and operating devices maintain a centerline height between 2 feet 10 inches and 3 feet 8 inches. Emergency strobe lights are positioned at a height of 6 feet 8 inches to the bottom of the light. Light switches, dimmers, and thermostats are placed within 1 foot 6 inches horizontally from the edge of the door, with adjacent switches ganged into a single cover plate where possible.
