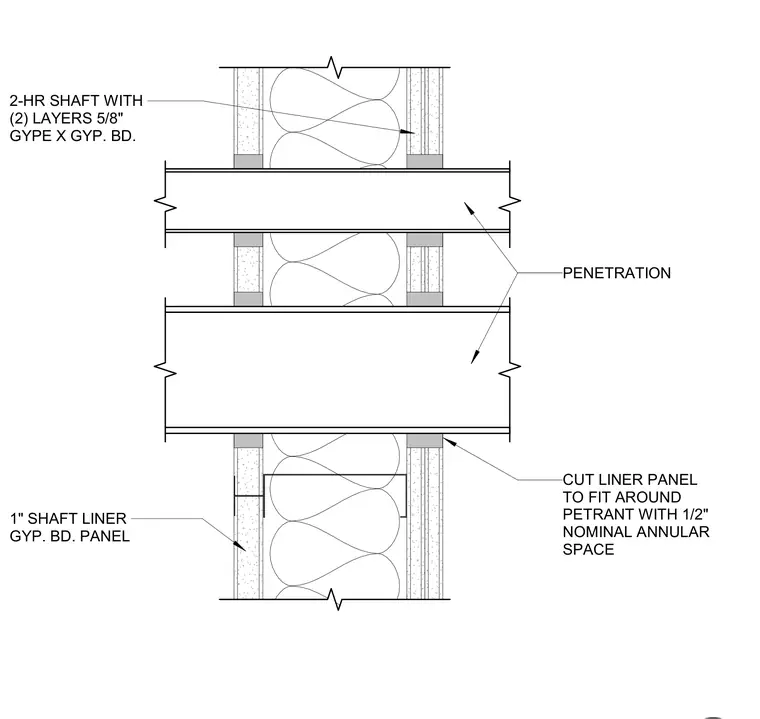

Conduits penetrate a two-hour fire-rated shaftwall constructed with a one-inch gypsum shaft liner panel and two layers of five-eighths-inch Type X gypsum board. The shaft liner panel is cut to fit around the penetrant with a one-half-inch nominal annular space.
PENETRATION CUT LINER PANEL TO FIT AROUND PETRANT WITH 1/2" NOMINAL ANNULAR SPACE 1" SHAFT LINER GYP. BD. PANEL 2-HR SHAFT WITH (2) LAYERS 5/8" GYPE X GYP. BD.
