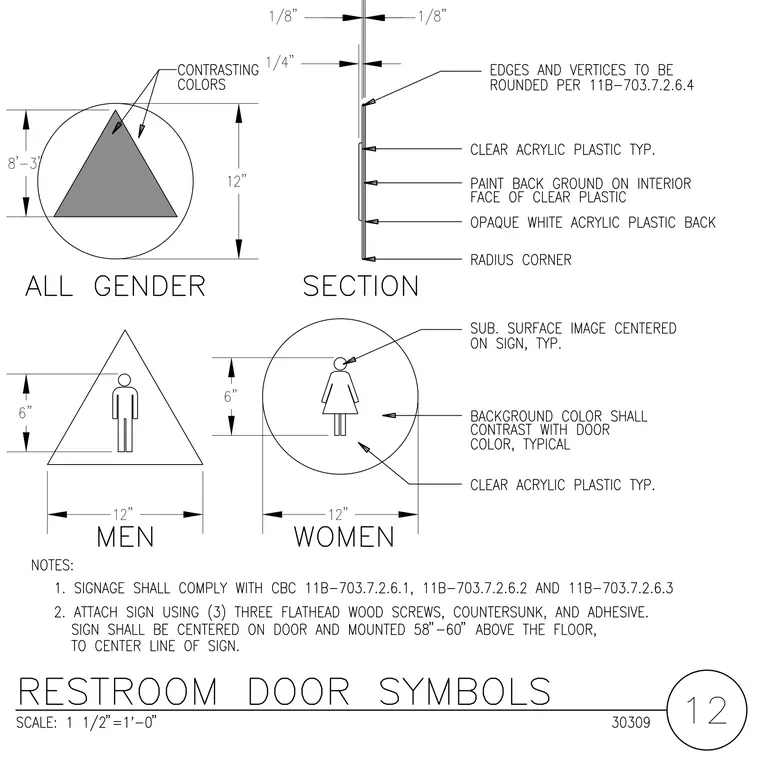

Restroom door signage consists of twelve-inch geometric tactile symbols fabricated from clear acrylic plastic with painted interior backgrounds and opaque white acrylic backs. Edges and vertices are rounded per CBC 11B-703.7.2.6.4, with subsurface images centered on each sign. Signs attach to doors using three countersunk flathead wood screws combined with adhesive, mounted between fifty-eight and sixty inches above the floor to the centerline of the sign.
