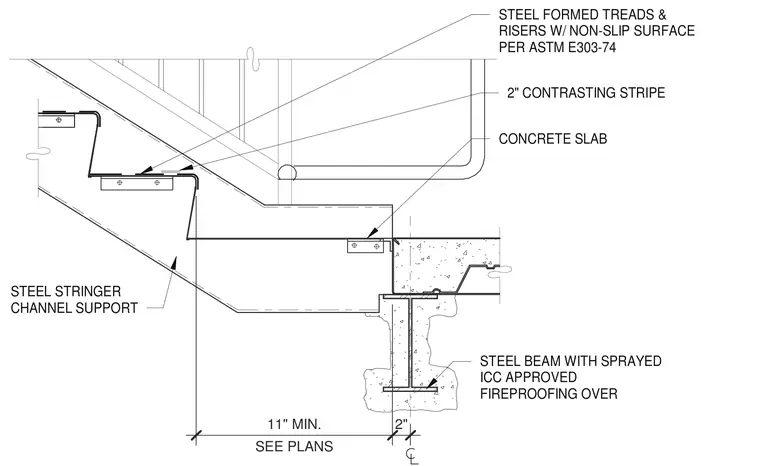

Steel formed treads and risers feature a non-slip surface per ASTM E303-74 with a two-inch contrasting stripe and an eleven-inch minimum depth sized per plans. The steel stringer channel support bears onto a concrete slab supported by a steel beam with sprayed ICC-approved fireproofing over it.
SEE PLANS 11" MIN. 2" STEEL FORMED TREADS & RISERS W/ NON-SLIP SURFACE PER ASTM E303-74 2" CONTRASTING STRIPE CONCRETE SLAB STEEL BEAM WITH SPRAYED ICC APPROVED FIREPROOFING OVER STEEL STRINGER CHANNEL SUPPORT
