An interior window frame assembly utilizes Western Integrated aluminum framing with a clear anodized finish. The glazed opening incorporates one-quarter-inch clear tempered glass and measures five feet wide by four feet high. The assembly is positioned at the second level with a sill height located seven feet above the reference floor level.

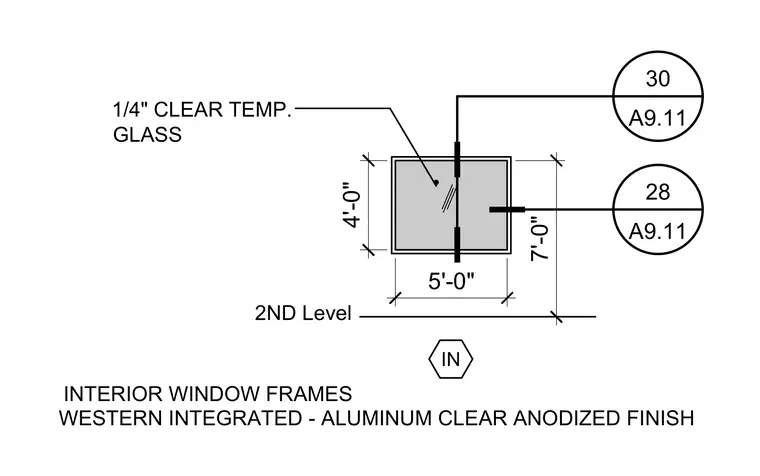

IN 7'-0" 5'-0" 4'-0" 1/4" CLEAR TEMP. GLASS 2ND Level 28 A9.11 30 A9.11 INTERIOR WINDOW FRAMES WESTERN INTEGRATED - ALUMINUM CLEAR ANODIZED FINISH
