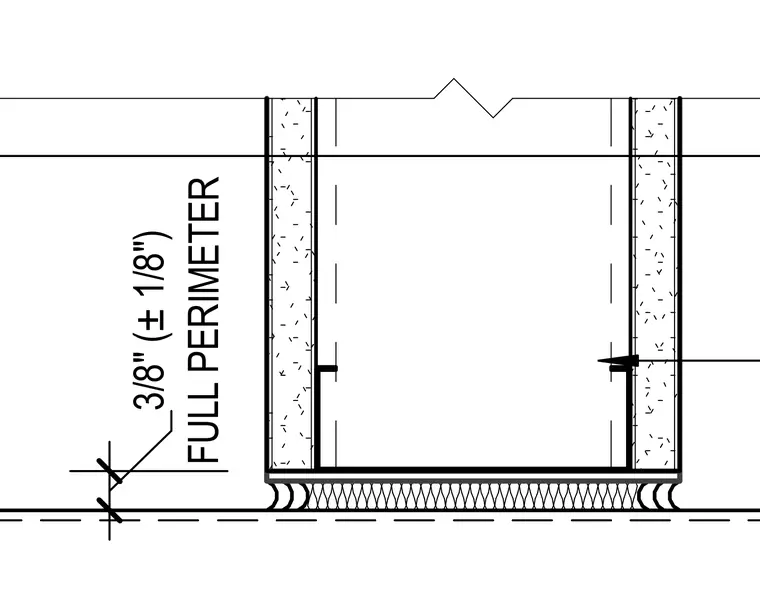

A full perimeter expansion joint assembly maintains a three-eighths inch dimension with a plus or minus one-eighth inch tolerance. The joint incorporates flanking material profiles and a continuous seal element along the perimeter boundary.
