Type 02N1A non-rated furred partition extends from the top of the slab to the underside of the deck or slab above. The assembly consists of three and five-eighths inch by twenty gauge steel studs spaced at twenty-four inches on center with one layer of five-eighths inch gypsum board on one side. Three and one-half inch mineral fiber insulation is friction-fit within the stud cavity. Limiting heights require verification with the framing manufacturer, and the partition must be braced as required to meet deflection limits.

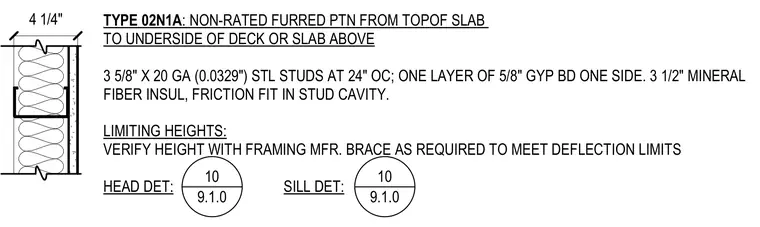

TYPE 02N1A : NON-RATED FURRED PTN FROM TOPOF SLAB TO UNDERSIDE OF DECK OR SLAB ABOVE 3 5/8" X 20 GA (0.0329") STL STUDS AT 24" OC; ONE LAYER OF 5/8" GYP BD ONE SIDE. 3 1/2" MINERAL FIBER INSUL, FRICTION FIT IN STUD CAVITY. LIMITING HEIGHTS: VERIFY HEIGHT WITH FRAMING MFR. BRACE AS REQUIRED TO MEET DEFLECTION LIMITS HEAD DET: SILL DET: 4 1/4" 9.1.0 10 9.1.0 10
