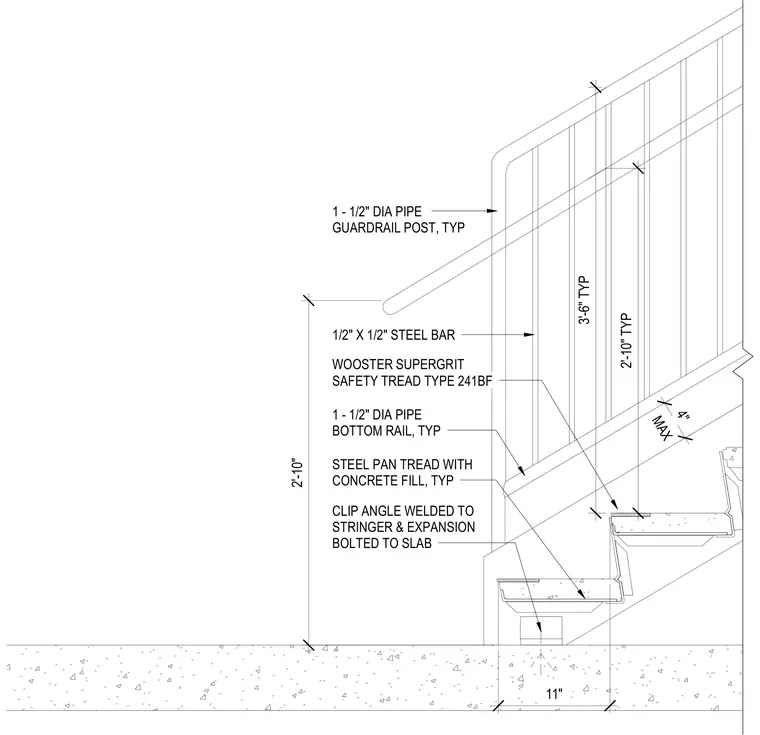

Starter landing connection for a concrete pan stair system bearing on a structural concrete slab. The steel pan treads receive concrete fill and feature a 1/2-inch by 1/2-inch steel bar along with Wooster Supergrit safety treads of type 241BF. A clip angle is welded to the stair stringer and expansion bolted to the concrete slab below. The assembly incorporates a 1-1/2-inch diameter pipe bottom rail and 1-1/2-inch diameter pipe guardrail posts set at typical heights and dimensions.
MAX 4" 11" 2'-10" 3'-6" TYP 2'-10" TYP 1/2" X 1/2" STEEL BAR WOOSTER SUPERGRIT SAFETY TREAD TYPE 241BF 1 - 1/2" DIA PIPE BOTTOM RAIL, TYP STEEL PAN TREAD WITH CONCRETE FILL, TYP CLIP ANGLE WELDED TO STRINGER & EXPANSION BOLTED TO SLAB 1 - 1/2" DIA PIPE GUARDRAIL POST, TYP
