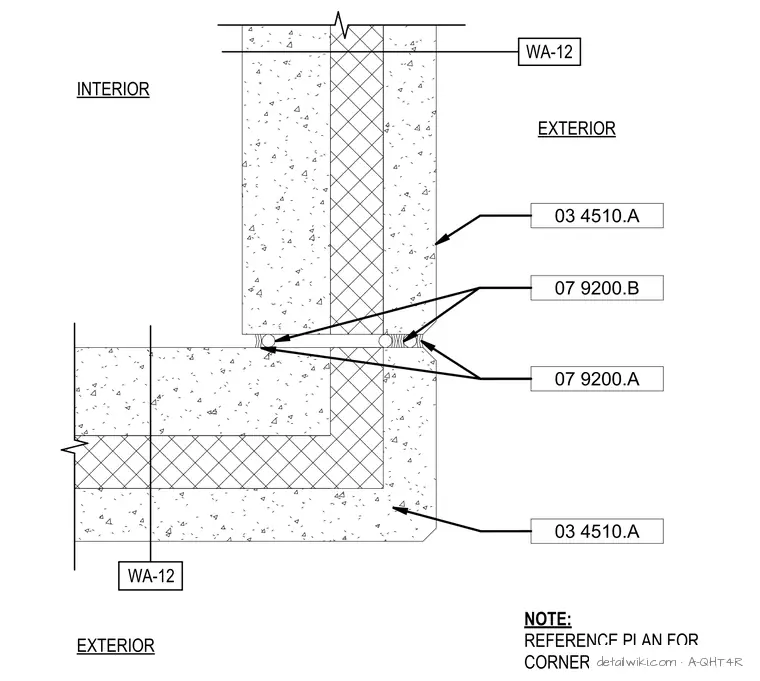

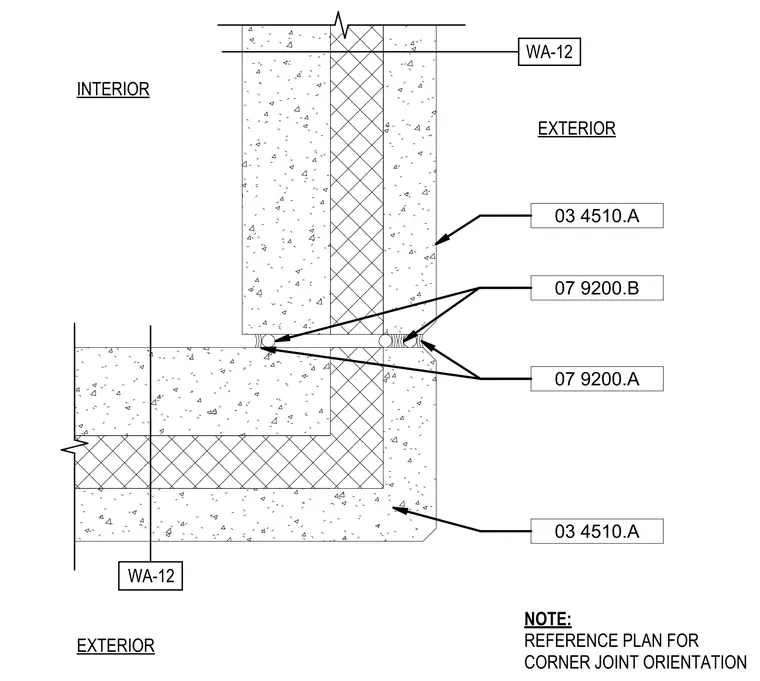

A vertical corner joint connects two insulated precast concrete wall panels, referenced as 03 4510.A, forming an exterior corner with continuous interior insulation. The joint assembly, designated as wall assembly type WA-12, utilizes a continuous seal consisting of backer rods and sealant per specification references 07 9200.A and 07 9200.B.
