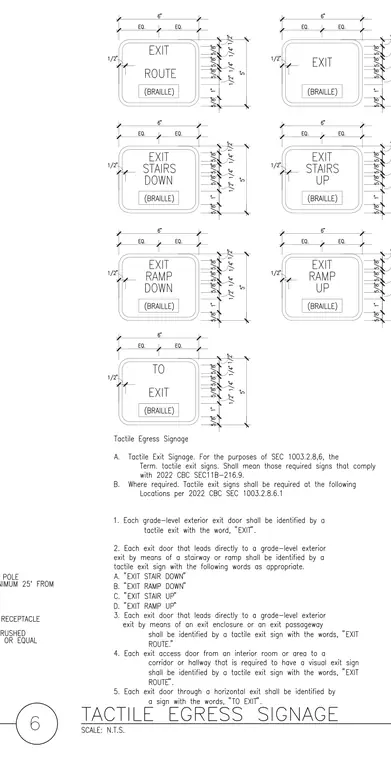

Tactile egress signage layouts detail standard six-inch by five-inch dimensions with braille text placement and text lines reading exit route, exit stairs down, exit stairs up, exit ramp down, exit ramp up, and to exit. Accompanying code notes outline California Building Code compliance for tactile exit signs at grade-level exterior exit doors, stairs, ramps, exit enclosures, and passageways.
