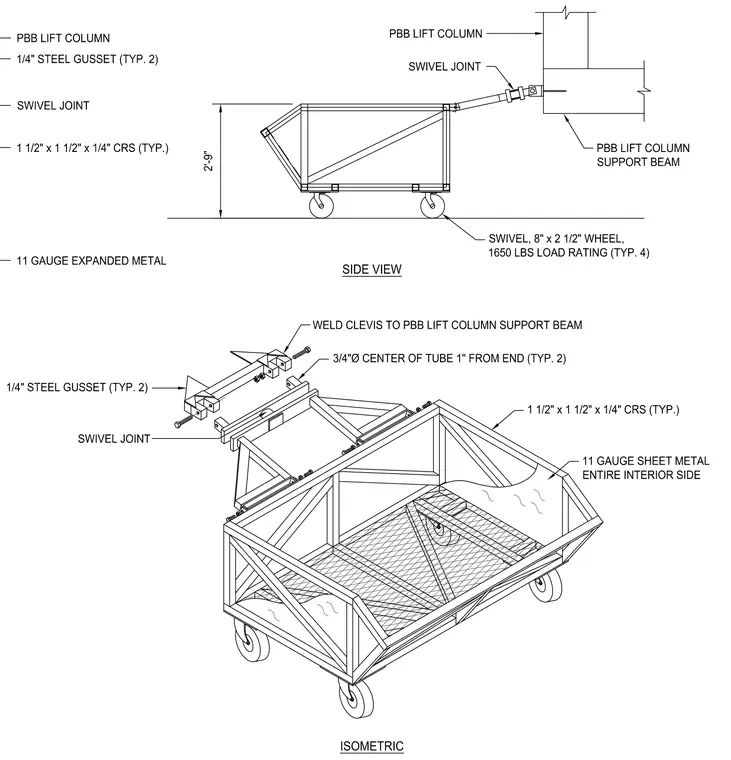

This assembly details a mobile cart constructed from one-and-a-half by one-and-a-half by one-quarter inch cold-rolled steel framing members. The interior sides are lined with eleven-gauge sheet metal, while the floor uses eleven-gauge expanded metal. Four eight-inch by two-and-a-half-inch swivel wheels with a sixteen-hundred-fifty-pound load rating support the cart from underneath. A tow arm extends from the cart, featuring a swivel joint and two quarter-inch steel gussets, connecting via a welded clevis to the passenger boarding bridge lift column support beam.
11 GAUGE SHEET METAL ENTIRE INTERIOR SIDE 1 1/2" x 1 1/2" x 1/4" CRS (TYP.) 1/4" STEEL GUSSET (TYP. 2) ISOMETRIC WELD CLEVIS TO PBB LIFT COLUMN SUPPORT BEAM SIDE VIEW PBB LIFT COLUMN SUPPORT BEAM PBB LIFT COLUMN SWIVEL, 8" x 2 1/2" WHEEL, 1650 LBS LOAD RATING (TYP. 4) 2'-9" 3/4"Ø CENTER OF TUBE 1" FROM END (TYP. 2) 11 GAUGE EXPANDED METAL PBB LIFT COLUMN 1/4" STEEL GUSSET (TYP. 2) SWIVEL JOINT 1 1/2" x 1 1/2" x 1/4" CRS (TYP.) SWIVEL JOINT SWIVEL JOINT
