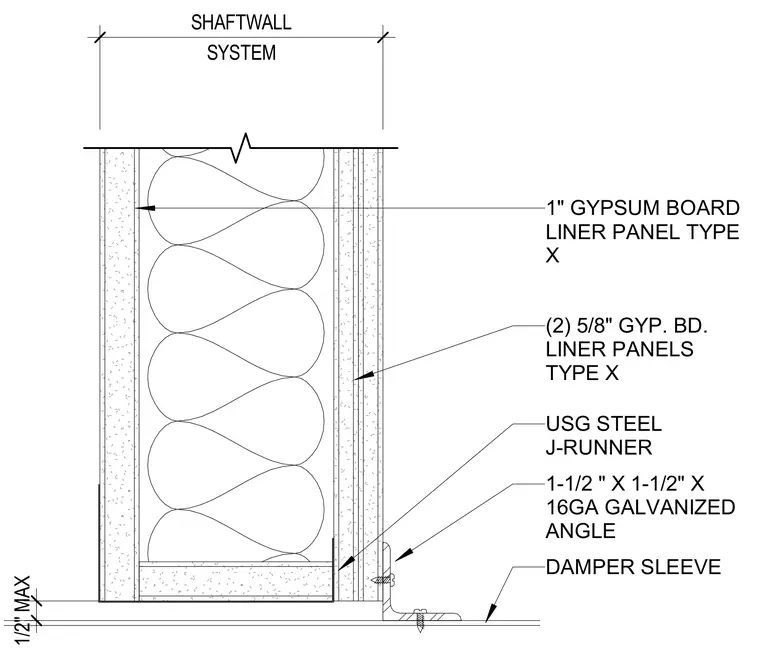

A shaftwall system connects to a damper sleeve using a USG steel J-runner and a 1-1/2 inch by 1-1/2 inch by 16-gauge galvanized angle. The assembly is faced with one inch thick gypsum board liner panels type X on one side and two layers of five-eighths inch thick gypsum board liner panels type X on the other side. Fasteners secure the angle to the damper sleeve flange.
USG STEEL J-RUNNER DAMPER SLEEVE (2) 5/8" GYP. BD. LINER PANELS TYPE X 1-1/2 " X 1-1/2" X 16GA GALVANIZED ANGLE 1" GYPSUM BOARD LINER PANEL TYPE X SYSTEM SHAFTWALL 1/2" MAX
