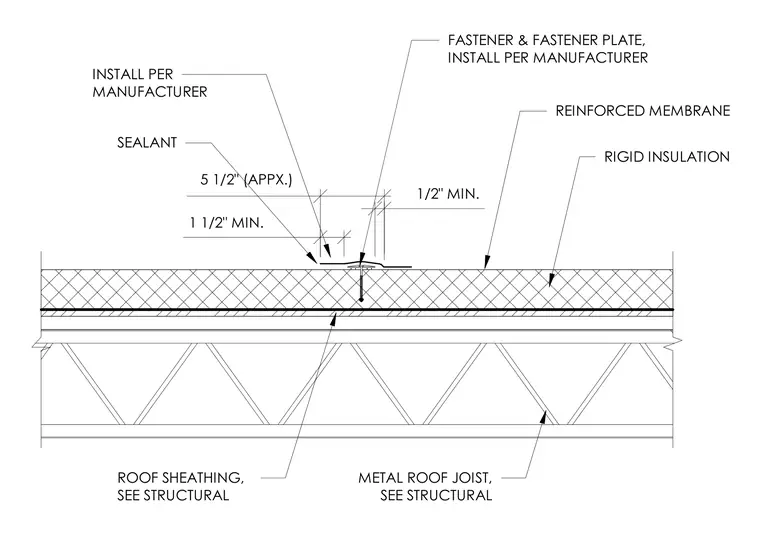

A reinforced membrane roof assembly installed over rigid insulation and roof sheathing, supported by a metal roof joist sized per structural drawings. The reinforced membrane is secured with fasteners and fastener plates installed per the manufacturer's specifications. A bead of sealant is applied at the membrane edge, maintaining minimum clearance dimensions of 1 1/2 inches and 1/2 inch respectively.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL METAL ROOF JOIST, SEE STRUCTURAL
