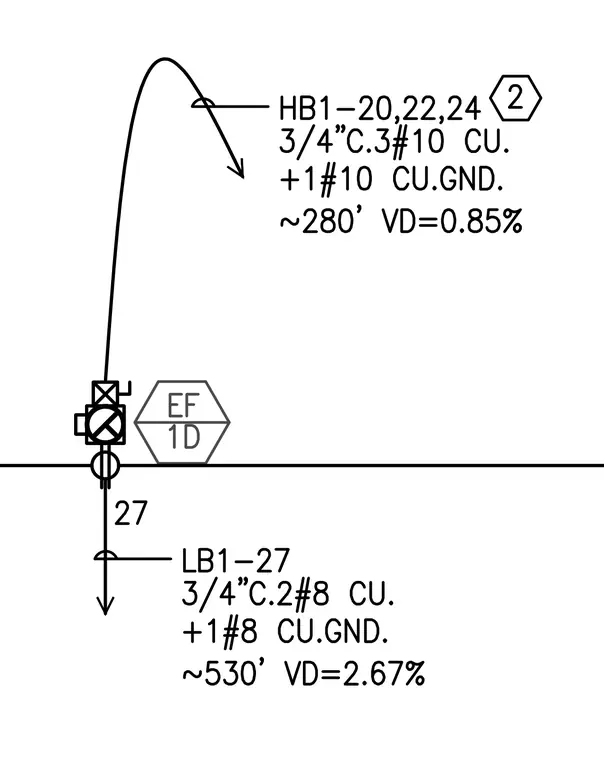

An electrical riser diagram details circuit runs originating from panelboards or equipment, specifying conduit sizes, copper conductor quantities and gauges, and equipment ground wire sizes. Circuit runs indicate lengths around two hundred eighty feet with a voltage drop of zero point eight five percent, and five hundred thirty feet with a voltage drop of two point six seven percent. Conductors are routed through three-quarter-inch conduits with size 10 and size 8 copper wires along with corresponding copper ground wires.
