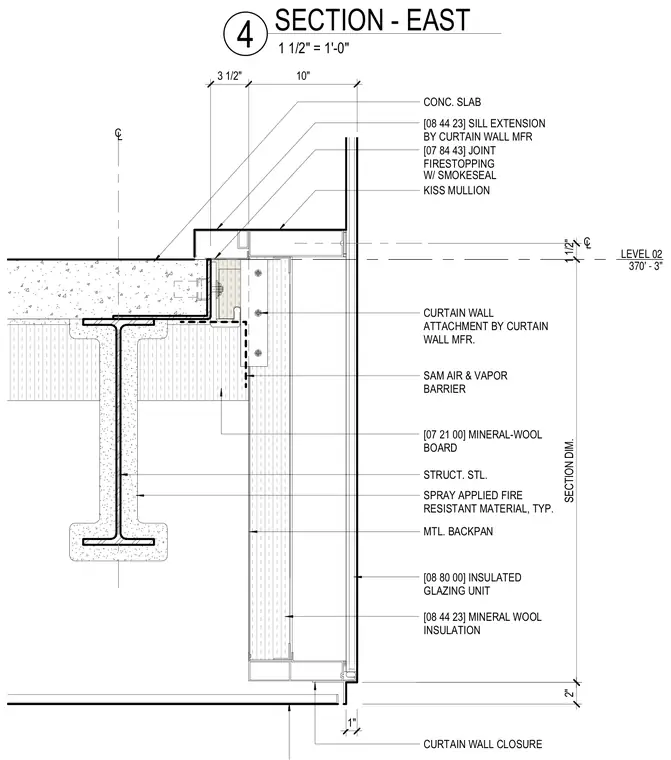

This architectural detail shows the intersection of an aluminum curtain wall system with a concrete floor slab and structural steel floor beam at Level 02 (elevation 370'-3"). A curtain wall sill extension and attachment anchor to the concrete slab edge, which is protected by joint firestopping with smoke seal. Mineral-wool board insulation and spray-applied fire-resistant material wrap the structural steel framing. An air and vapor barrier is applied behind the metal backpan, which aligns with the insulated glazing unit and exterior kiss mullion.
LEVEL 02 370' - 3" 1 1/2" SECTION DIM. C L CURTAIN WALL CLOSURE STRUCT. STL. CURTAIN WALL ATTACHMENT BY CURTAIN WALL MFR. CONC. SLAB SPRAY APPLIED FIRE RESISTANT MATERIAL, TYP. W/ SMOKESEAL 10" 3 1/2" C L 2" SAM AIR & VAPOR BARRIER MTL. BACKPAN 1" KISS MULLION [08 44 23] MINERAL WOOL INSULATION [08 80 00] INSULATED GLAZING UNIT [08 44 23] SILL EXTENSION BY CURTAIN WALL MFR [07 84 43] JOINT FIRESTOPPING [07 21 00] MINERAL-WOOL BOARD 1 1/2" = 1'-0" 4 SECTION - EAST
