Architectural · A-QH4KQ

Fascia Panel Attachment at Steel C-Shape Beam

Materials

Elements

About this detail

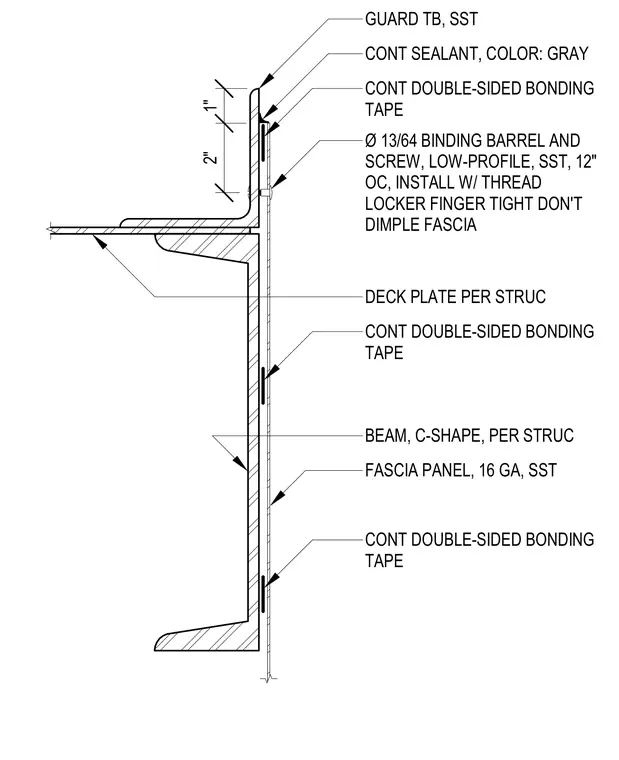

A sixteen-gauge stainless steel fascia panel attaches to a structural steel c-shape beam using continuous double-sided bonding tape along the panel height. A low-profile stainless steel binding barrel and screw, thirteen sixty-fourths of an inch in diameter, fastens the assembly at twelve inches on center with a thread locker installed finger tight without dimpling the fascia. Continuous gray sealant and a stainless steel guard tube seal the top joint above a deck plate sized per structural drawings.
