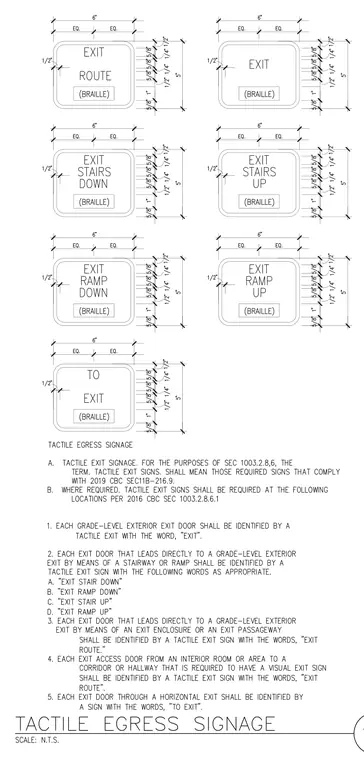

Tactile egress signage details show dimensions and layouts for various exit signs including exit route, exit stairs down and up, exit ramp down and up, and general exit signs with braille components. Each sign measures six inches wide by five inches high with specified border clearances. Accompanying notes outline CBC compliance for tactile exit signs at grade-level exterior exit doors, stairways, ramps, exit enclosures, and corridors.
