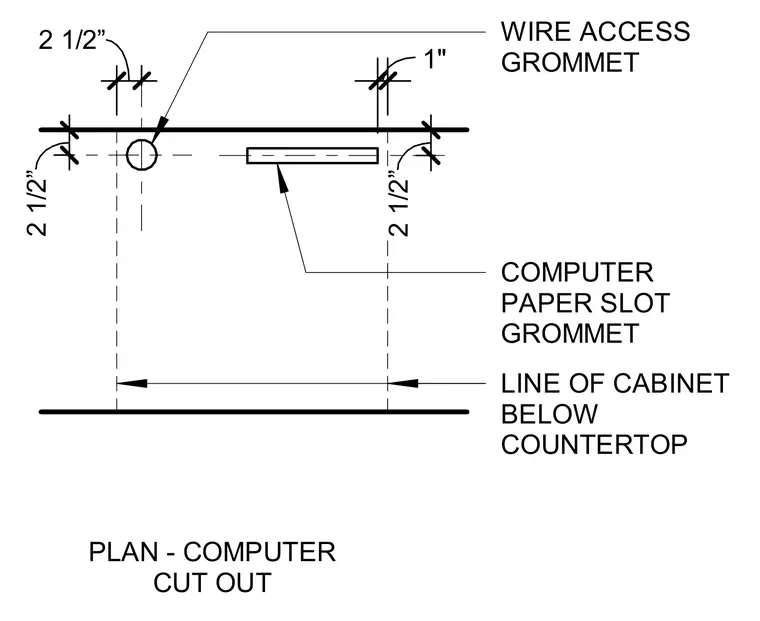

The countertop cutout plan details the placement of a wire access grommet and a computer paper slot grommet relative to the supporting cabinet below. Dimensions locate the wire access grommet two and one-half inches from the back edge and two and one-half inches from the interior cabinet partition. The computer paper slot grommet is centered with a one-inch setback from the rear edge.
2 1/2” 2" 1" 2 1/2” 2 1/2” WIRE ACCESS GROMMET COMPUTER PAPER SLOT GROMMET LINE OF CABINET BELOW COUNTERTOP PLAN - COMPUTER CUT OUT
