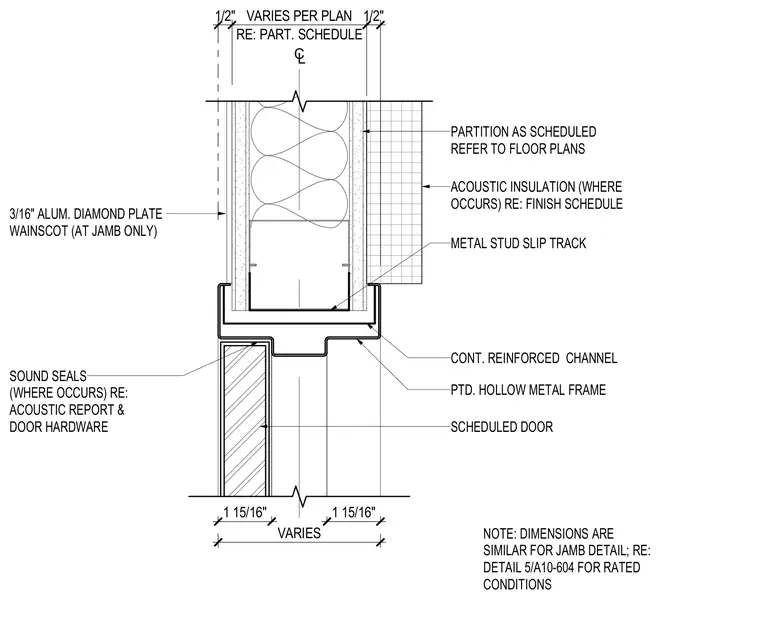

An interior partition head intersects with a painted hollow metal frame and scheduled door. A metal stud slip track is installed above the continuous reinforced channel. Acoustic insulation is placed within the wall cavity as scheduled per the finish schedule. A 3/16-inch aluminum diamond plate wainscot is attached at the jamb only. Sound seals are included where indicated by the acoustic report and door hardware specifications.
PARTITION AS SCHEDULED REFER TO FLOOR PLANS METAL STUD SLIP TRACK CONT. REINFORCED CHANNEL PTD. HOLLOW METAL FRAME CL 3/16" ALUM. DIAMOND PLATE WAINSCOT (AT JAMB ONLY) SCHEDULED DOOR SOUND SEALS (WHERE OCCURS) RE: ACOUSTIC REPORT & DOOR HARDWARE ACOUSTIC INSULATION (WHERE OCCURS) RE: FINISH SCHEDULE 1 15/16" 1 15/16" VARIES 1/2" RE: PART. SCHEDULE VARIES PER PLAN 1/2" NOTE: DIMENSIONS ARE SIMILAR FOR JAMB DETAIL; RE: DETAIL 5/A10-604 FOR RATED CONDITIONS
