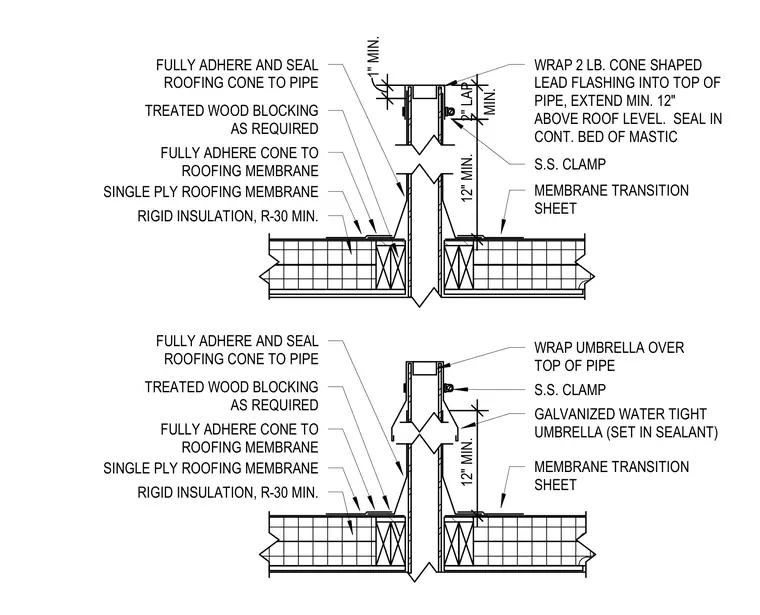

A pipe penetrates a single-ply roofing membrane over a roof deck assembly with a minimum R-30 rigid insulation layer and treated wood blocking as required. A two-pound cone-shaped lead flashing or galvanized watertight umbrella is wrapped into the top of the pipe, extending a minimum of twelve inches above the roof level and set in a continuous bed of mastic. A stainless steel clamp secures the top wrap of the umbrella over the pipe with a one-inch minimum clearance and a two-inch minimum lap. A membrane transition sheet is fully adhered and sealed around the roofing cone to the single-ply roofing membrane.
MEMBRANE TRANSITION SHEET GALVANIZED WATER TIGHT UMBRELLA (SET IN SEALANT) S.S. CLAMP WRAP UMBRELLA OVER TOP OF PIPE MEMBRANE TRANSITION SHEET S.S. CLAMP WRAP 2 LB. CONE SHAPED LEAD FLASHING INTO TOP OF PIPE, EXTEND MIN. 12" ABOVE ROOF LEVEL. SEAL IN CONT. BED OF MASTIC SINGLE PLY ROOFING MEMBRANE RIGID INSULATION, R-30 MIN. FULLY ADHERE CONE TO ROOFING MEMBRANE TREATED WOOD BLOCKING AS REQUIRED FULLY ADHERE AND SEAL ROOFING CONE TO PIPE SINGLE PLY ROOFING MEMBRANE RIGID INSULATION, R-30 MIN. FULLY ADHERE CONE TO ROOFING MEMBRANE TREATED WOOD BLOCKING AS REQUIRED FULLY ADHERE AND SEAL ROOFING CONE TO PIPE 12" MIN. 12" MIN. MIN. 2" LAP 1" MIN.
