A structural steel beam supports a 6 1/2" x 6 1/2" x 1/4" aluminum plate mounted to its bottom flange. A 1/2" thick aluminum plate attaches below via field-welded threaded studs installed by the solar reflector contractor.

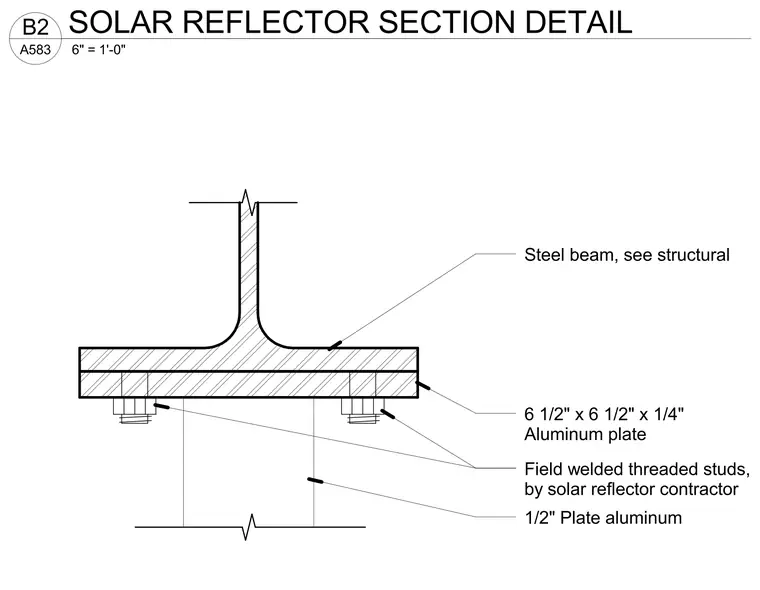

Steel beam, see structural 6 1/2" x 6 1/2" x 1/4" Aluminum plate Field welded threaded studs, by solar reflector contractor 1/2" Plate aluminum 6" = 1'-0" A583 B2 SOLAR REFLECTOR SECTION DETAIL
