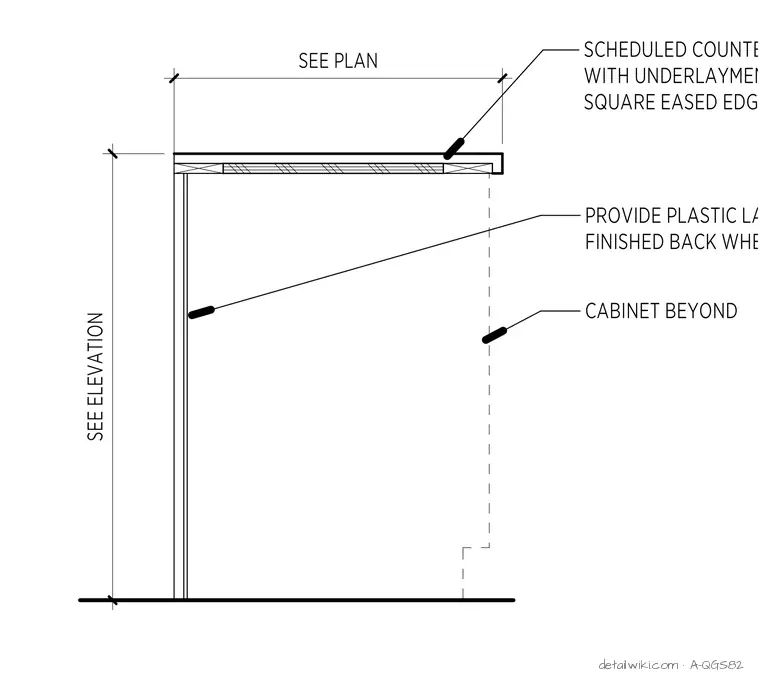

Base cabinet assembly with plastic laminate finish on the back panel. Countertop consists of scheduled material with underlayment and a square eased edge; depth is dimensioned as see plan. Overall cabinet height is dimensioned as see elevation, with cabinet interior beyond the section cut.
