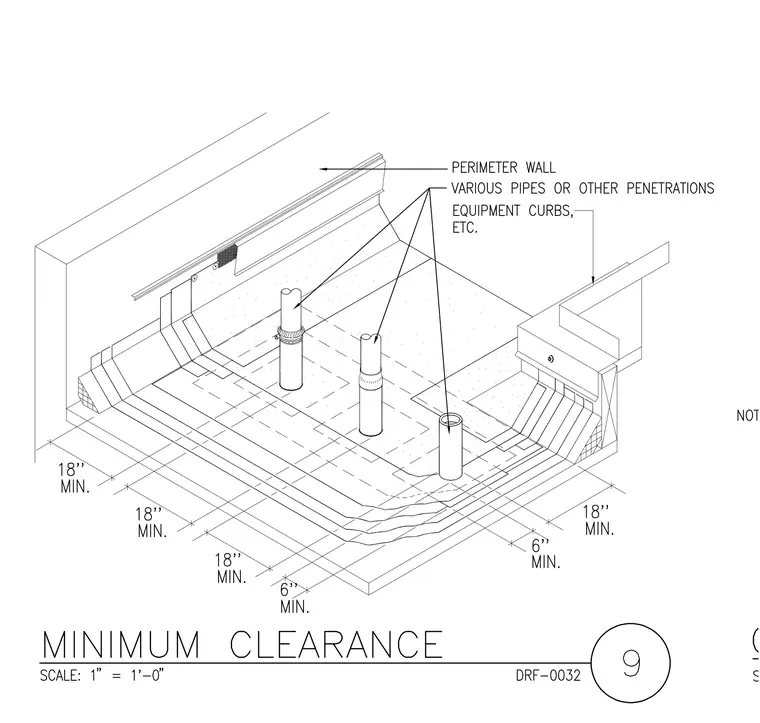

This drawing illustrates an isometric view of a flat roof assembly outlining minimum clearance dimensions for various roof penetrations such as pipes, equipment curbs, and perimeter walls. It highlights spacing rules including 18-inch and 6-inch minimum clearance zones around penetrations and parapet walls. The detail helps ensure proper waterproofing access, flashing installation, and maintenance space on commercial roofing systems.
