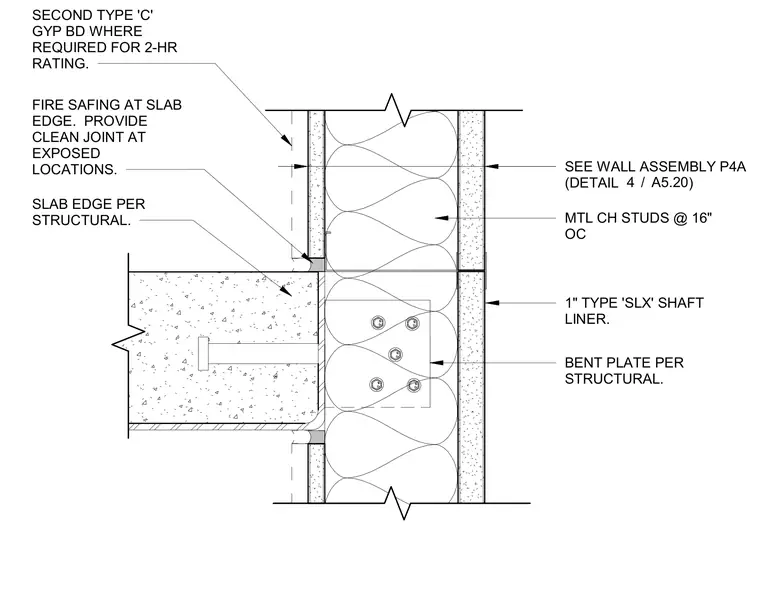

Metal stud shaft wall framing with one inch type SLX shaft liner and type C gypsum board for two-hour fire rating requirements. A bent plate attached to the structural concrete slab edge supports the shaft assembly. Fire safing insulation is packed at the slab edge with a clean joint sealant at exposed locations.
SEE WALL ASSEMBLY P4A (DETAIL ) SECOND TYPE 'C' GYP BD WHERE REQUIRED FOR 2-HR RATING. SLAB EDGE PER STRUCTURAL. FIRE SAFING AT SLAB EDGE. PROVIDE CLEAN JOINT AT EXPOSED LOCATIONS. MTL CH STUDS @ 16" OC 1" TYPE 'SLX' SHAFT LINER. BENT PLATE PER STRUCTURAL. / 4 A5.20
