Architectural · A-QGJ2E

Knee and Toe Clearances

About this detail

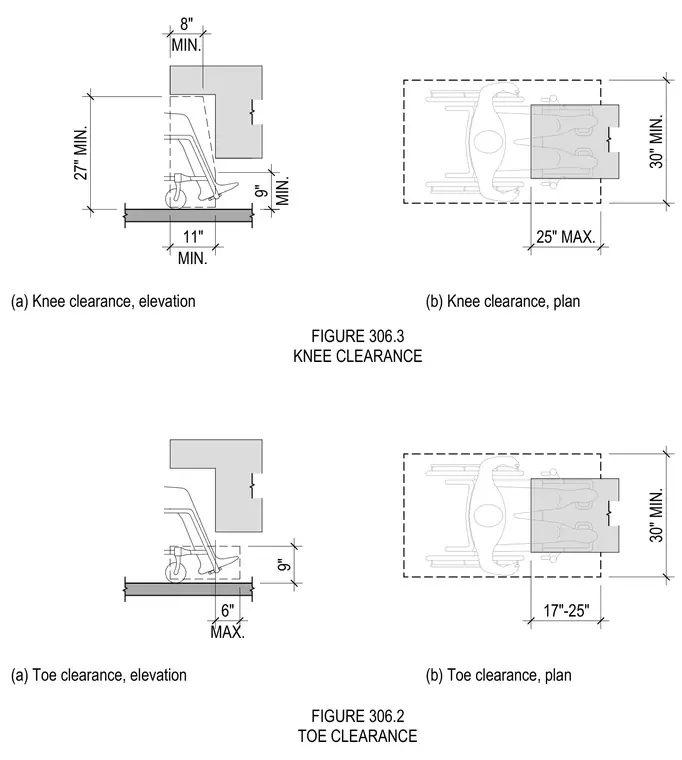

Accessibility diagrams illustrating mandatory knee and toe clearance dimensions for wheelchair users at counters, sinks, and work surfaces. The knee clearance elevation establishes a minimum twenty-seven-inch vertical clearance, a minimum eight-inch depth at twenty-seven inches high, and extending to an eleven-inch minimum depth at nine inches above the finished floor, with a maximum twenty-five-inch knee depth in plan. The toe clearance elevation defines a nine-inch high space extending a maximum of six inches deep at the floor level. Both configurations maintain a thirty-inch minimum clear width in plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
