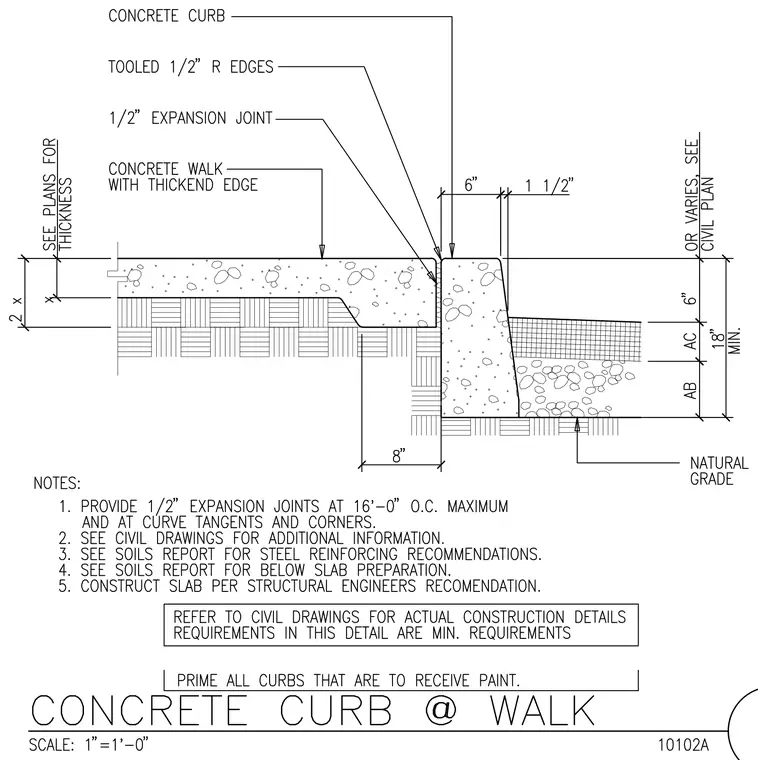

A cast-in-place concrete curb abuts a concrete walk featuring a thickened edge over aggregate base and asphalt concrete layers. A one-half-inch expansion joint separates the curb from the walk, and both elements include tooled one-half-inch radius edges. The curb extends to an eighteen-inch minimum depth below natural grade, with dimensions varying per civil plans. Additional notes specify one-half-inch expansion joints at sixteen-foot maximum on-center spacing and at curve tangents and corners.
