This one-hour fire-rated partition head assembly connects to a concrete slab on metal deck using a Fire Trak shadowline runner and Posiklip stud attachment. Five-eighths-inch Type X gypsum wallboard is applied to both sides of the metal studs with fasteners kept to the stud framing only. Mineral wool fire safing insulation fills the void, supplemented by a static fire and smoke sealant matching the partition rating. Sound attenuation fire blanket is included per partition type.

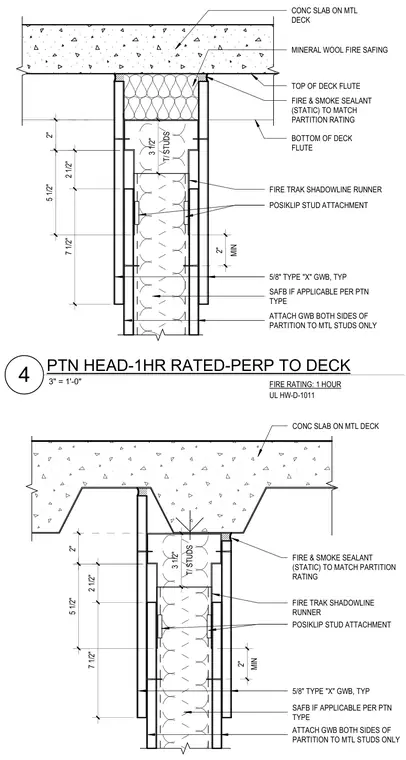

FIRE TRAK SHADOWLINE RUNNER POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB, TYP 2" FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING CONC SLAB ON MTL DECK MIN 2" 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" UL HW-D-1011 FIRE RATING: 1 HOUR FIRE TRAK SHADOWLINE RUNNER POSIKLIP STUD ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE ATTACH GWB BOTH SIDES OF PARTITION TO MTL STUDS ONLY 5/8" TYPE "X" GWB, TYP 2" BOTTOM OF DECK FLUTE TOP OF DECK FLUTE CONC SLAB ON MTL DECK FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING MINERAL WOOL FIRE SAFING MIN 2" 2 1/2" 7 1/2" 5 1/2" T/ STUDS 3 1/2" 3" = 1'-0" 4 PTN HEAD-1HR RATED-PERP TO DECK
