A metal top J runner track is secured to an overhead concrete slab with minimum one-eighth-inch powder-actuated fasteners spaced at twenty-four inches on center with minimum one-and-one-quarter-inch embedment. The track is left unattached to the studs or gypsum wallboard to allow for one inch of deflection clearance unless noted otherwise. A continuous fire and smoke rated spray-on sealant system overlaps a minimum of one inch onto the gypsum wallboard and concrete slab. Sound attenuation fire blanket is installed in the stud cavity per partition type, and gypsum wallboard layers are attached to the studs only with drywall screws.

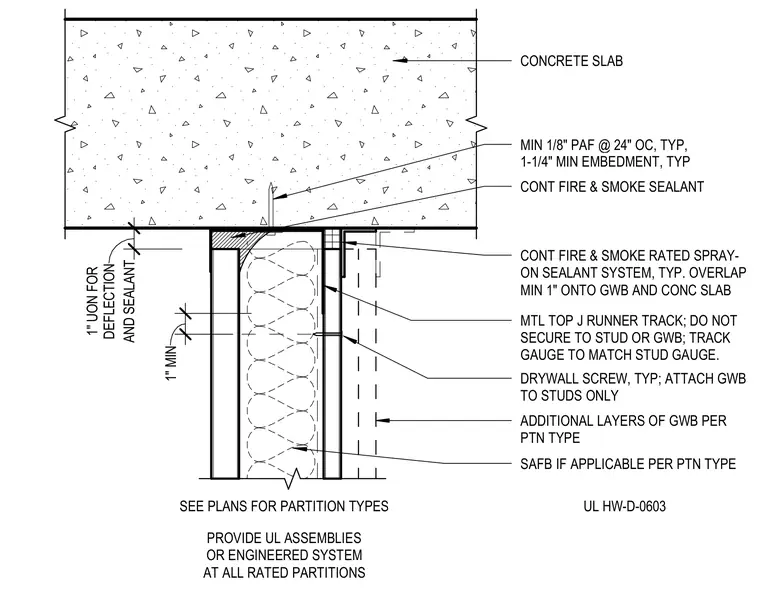

CONCRETE SLAB MIN 1/8" PAF @ 24" OC, TYP, 1-1/4" MIN EMBEDMENT, TYP CONT FIRE & SMOKE RATED SPRAY- ON SEALANT SYSTEM, TYP. OVERLAP MIN 1" ONTO GWB AND CONC SLAB MTL TOP J RUNNER TRACK; DO NOT SECURE TO STUD OR GWB; TRACK GAUGE TO MATCH STUD GAUGE. SEE PLANS FOR PARTITION TYPES PROVIDE UL ASSEMBLIES OR ENGINEERED SYSTEM AT ALL RATED PARTITIONS DRYWALL SCREW, TYP; ATTACH GWB TO STUDS ONLY ADDITIONAL LAYERS OF GWB PER PTN TYPE SAFB IF APPLICABLE PER PTN TYPE CONT FIRE & SMOKE SEALANT UL HW-D-0603 AND SEALANT 1" UON FOR DEFLECTION 1" MIN
