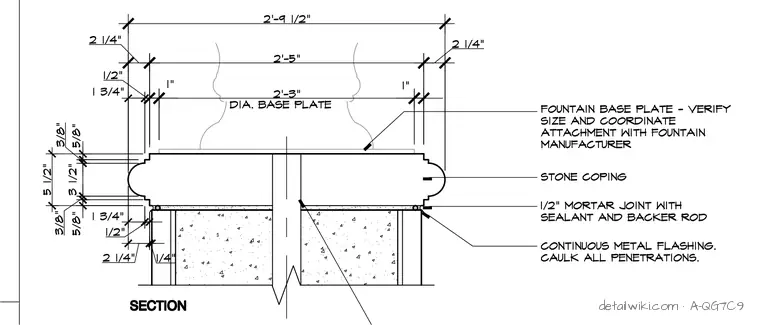

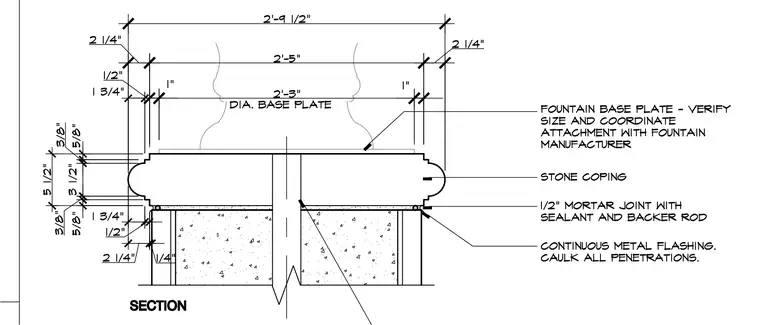

A stone coping assembly with rounded edge profiles seats atop a concrete fountain base, resting on a one-half-inch mortar joint equipped with a backer rod and sealant. Continuous metal flashing is installed below the stone unit with all penetrations caulked. A fountain base plate of two-feet-three-inches diameter is positioned on top, with size and attachment to be coordinated with the fountain manufacturer. Dimensions detail the two-feet-nine-and-one-half-inch overall width and vertical reveals.
