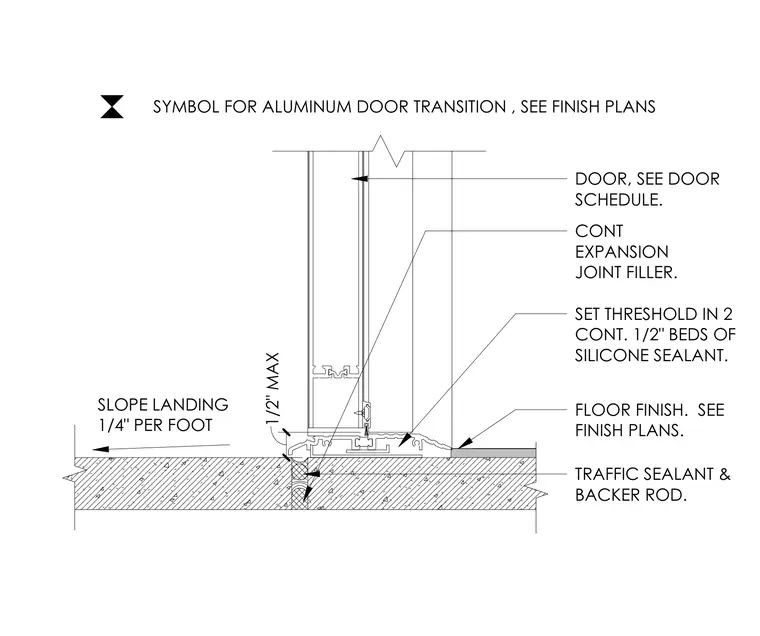

An aluminum threshold is set in two continuous half-inch beds of silicone sealant over a concrete floor slab and landing. The landing slopes outward at one-quarter inch per foot, incorporating a continuous expansion joint filler below the threshold alongside traffic sealant and a backer rod. The adjacent floor finish aligns with the threshold per the finish plans, while the aluminum door frame is detailed above according to the door schedule.
FLOOR FINISH. SEE FINISH PLANS. SLOPE LANDING 1/4" PER FOOT DOOR, SEE DOOR SCHEDULE. CONT EXPANSION JOINT FILLER. 1/2" MAX SET THRESHOLD IN 2 CONT. 1/2" BEDS OF SILICONE SEALANT. TRAFFIC SEALANT & BACKER ROD. SYMBOL FOR ALUMINUM DOOR TRANSITION , SEE FINISH PLANS
